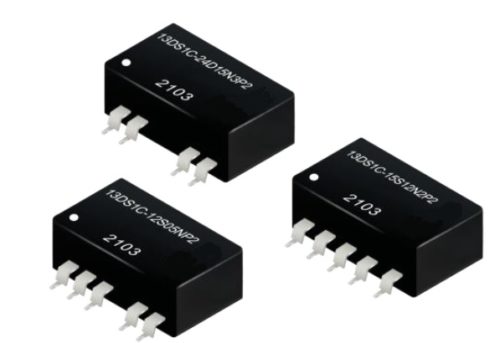

13DS1C – 2 Watt

13DS1C-2W Series, 2 Watt Surface Mount DC-DC Converters

Single & Dual Outputs

18 Pin & 22 Pin SMD

1.5KV – 3KV Isolation

Request a quote Download Datasheet

Model	Output VDC	Output Current	Package Style
13DS1C-xxS05NXP2	5 Volts	400mA	1, 2 or 3
13DS1C-xxS09NXP2	9 Volts	223mA	1, 2 or 3
13DS1C-xxS12NXP2	12 Volts	167mA	1, 2 or 3
13DS1C-xxS15NXP2	15 Volts	133mA	1, 2 or 3
13DS1C-xxS24NXP2	24 Volts	84mA	1, 2 or 3

Model	Output 1	Output 2	Package Style
13DS1C-xxD05NXP2	+5 Volts / +200mA	-5 Volts / -200mA	1,2 or 3
13DS1C-xxD09NXP2	+9 Volts / +112mA	-9 Volts / -112mA	1,2 or 3
13DS1C-xxD12NXP2	+12 Volts / +84mA	-12 Volts / -84mA	1,2 or 3
13DS1C-xxD15NXP2	+15 Volts / +67mA	-15 Volts / -67mA	1,2 or 3
13DS1C-xxD24NXP2	+24 Volts / +42mA	-24 Volts / -42mA	1,2 or 3

* XX refers to input voltage : replace xx with 12=12 Volts, 15=15 Volts, 24=24 Volts

* X = 1 or 2 or 3 for package style, No suffix X = package 1, X=2 package 2, X=3 package 3

* 1.5KV Isolation as standard, add suffix 'H3' for 3KV Isolation
