AKC Series

AKC Series, 20 Watt Single, Dual & Triple Outputs, Encapsulated Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input Range 90-264VAC, 47-440 Hz
  • Ultra Compact Size: 2.73 x 1.87 x 0.85 Inches
  • Low Standby <0.5W
  • Regulated Output
  • Low Ripple and Noise
  • Isolation Class II
  • Safety approvals - IEC / EN 60950, UL / IEC / EN 62368-1
  • 3-Year Product Warranty

Models and Ratings

Model Input VAC Output VDC Output Current Size
AKC-3.3S 90~264 3.3 Volts 4.5 Amps 69.5 x 47.5 x 21.7mm
AKC-5S 90~264 5 Volts 4 Amps 69.5 x 47.5 x 21.7mm
AKC-7.35S 90~264 7.35 Volts 2.73 Amps 69.5 x 47.5 x 21.7mm
AKC-9S 90~264 9 Volts 2.23 Amps 69.5 x 47.5 x 21.7mm
AKC-12S 90~264 12 Volts 1.67 Amps 69.5 x 47.5 x 21.7mm
AKC-15S 90~264 15 Volts 1.34 Amps 69.5 x 47.5 x 21.7mm
AKC-24S 90~264 24 Volts 840mA 69.5 x 47.5 x 21.7mm

Dual Output Models

Model Input VAC Output 1 Output 2 Size
AKC-5D 90~264 +5 Volts / 2 Amps -5 Volts / 2 Amps 69.5 x 47.5 x 21.7mm
AKC-12D 90~264 +12 Volts / 833mA -12 Volts / 833mA 69.5 x 47.5 x 21.7mm
AKC-15D 90~264 +15 Volts / 667mA -15 Volts / 667mA 69.5 x 47.5 x 21.7mm

Triple Output Models

Model Input VAC Output 1 Output 2 Output 3 Size
AKC-5S12D 90~264 5 Volts / 2.8 Amps +12 Volts / 250mA -12 Volts / 250mA 69.5 x 47.5 x 21.7mm
AKC-5S15D 90~264 5 Volts / 2.8 Amps +15 Volts / 200mA -15 Volts / 200mA 69.5 x 47.5 x 21.7mm

Related Products

tuhs25f-power-supply tuhs25f-power-supply

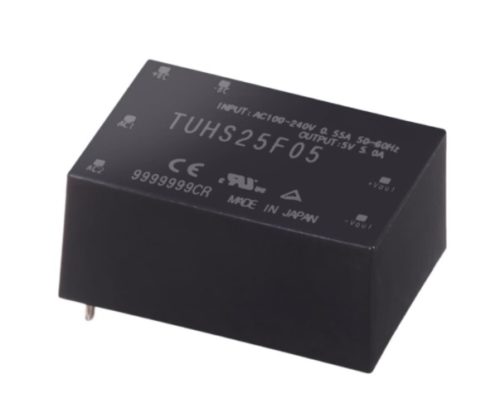

TUHS25F Series
