CBM300S Series, 300 Watt Conduction Cooled AC-DC Power Module

Request a quote Download Datasheet

Universal Input Range 90~264Vac
High Efficiency up to 94%
Class I
No Load Input Power Consumption<0.5W
Peak Power Operation up to 360 Watt for 5s
Approval IEC/EN/UL 62368-1
Approval EN55032 andCISPR/FCC Class B
Operating Altitude 5000m
Continuous Short Circuit Protection
Over Voltage Protection
19.7mm Ultra Low-Profile Package
Full Load with Baseplate Cooled and No Fan Required
Build in EMI Filters Bulk Capacitor and Output Capacitors
High Power Density 24.95W/Inches3
Wide Operating Temperature Range

Models and Ratings

Model	Input VAC	Output VDC	Output Current	Size
CBM300S120	90~264 VAC	12 Volts	25 Amps	116.8 x 85 x 19.7mm
CBM300S150	90~264 VAC	15 Volts	20 Amps	116.8 x 85 x 19.7mm
CBM300S240	90~264 VAC	24 Volts	12.5 Amps	116.8 x 85 x 19.7mm
CBM300S280	90~264 VAC	28 Volts	10.71 Amps	116.8 x 85 x 19.7mm
CBM300S360	90~264 VAC	36 Volts	8.33 Amps	116.8 x 85 x 19.7mm
CBM300S480	90~264 VAC	48 Volts	6.25 Amps	116.8 x 85 x 19.7mm
CBM300S540	90~264 VAC	54 Volts	5.55 Amps	116.8 x 85 x 19.7mm

Related Products

cbm70-series-power-supply

CBM70 Series

Models & Information

tuns100f-power-supply

TUNS100F

Models & Information

tuns300f power supply

TUNS300F

Models & Information

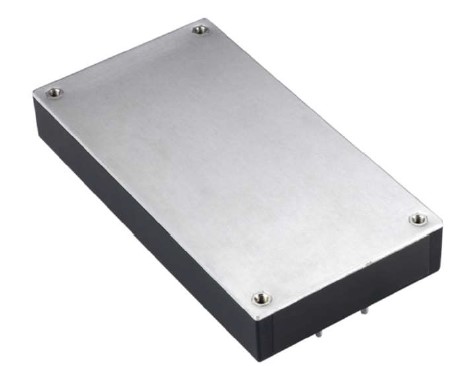

cbm150s-power-supplies
