CE-150 Series CE-150 Series

CE-150-1005

CE-150 Series, 150 Watt Single & Multi Output Power Supplies

U-Channel & Cased Versions Available

ITE & Medical Approval



Request a quote Download Datasheet

Features

  • Compact 4.0" x 7.0" x 1.75" Size
  • 2 Year Warranty
  • Universal 85-264V Input
  • 1-4 Tightly-Regulated Outputs
  • High Efficiency
  • 0-70°C Operating Temperature
  • IEC 60601-1 3rd ed. Medical Cert
  • IEC 62368-1 2nd ed. Certification
  • IEC 60601-1-2 4th ed. EMC
  • Class B Emissions per EN55011/32
  • Optional Remote Inhibit/Enable
  • Optional Power Fail Warning
  • Optional Perforated Cover

Models and Ratings

ModelInput VACOutput VDCOutput CurrentSize
CE-150-100185~2643.3 Volts30 Amps177.8 x 101.6 x 44.5mm
CE-150-100285~2645 Volts30 Amps177.8 x 101.6 x 44.5mm
CE-150-100385~26412 Volts12.5 Amps177.8 x 101.6 x 44.5mm
CE-150-100485~26415 Volts10 Amps177.8 x 101.6 x 44.5mm
CE-150-100585~26424 Volts6.25 Amps177.8 x 101.6 x 44.5mm
CE-150-100685~26428 Volts5.4 Amps177.8 x 101.6 x 44.5mm
CE-150-100785~26448 Volts3.1 Amps177.8 x 101.6 x 44.5mm

Dual Output Units

ModelInput VACOutput 1Output 2Size
CE-150-200185~264+12 Volts / 7.5 Amps-12 Volts / 5 Amps177.8 x 101.6 x 44.5mm
CE-150-200285~264+15 Volts / 5 Amps-15 Volts / 5 Amps177.8 x 101.6 x 44.5mm
CE-150-200385~264+5 Volts / 15 Amps+12 Volts / 6 Amps177.8 x 101.6 x 44.5mm
CE-150-210185~264+5 Volts / 15 Amps+24 Volts / 5 Amps177.8 x 101.6 x 44.5mm
ModelInput VACOutput 1Output 2Output 3Size
CE-150-300185~264+5 Volts / 15 Amps+12 Volts / 5 Amps-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-300285~264+5 Volts / 15 Amps+15 Volts / 5 Amps-15 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-300385~264+15 Volts / 5 Amps-15 Volts / 5 Amps+5 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-300485~264+5 Volts / 15 Amps+15 Volts / 5 Amps+36 Volts / 2.5 Amps177.8 x 101.6 x 44.5mm

Quad Output Units

ModelOutput 1Output 2Output 3Output 4Size
CE-150-4001+3.3 Volts / 15 Amps+5 Volts / 5 Amps+12 Volts / 2 Amps-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4002+5 Volts / 15 Amps+3.3 Volts / 5 Amps+12 Volts / 2 Amps-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4003+5 Volts / 15 Amps+3.3 Volts / 5 Amps+15 Volts / 2 Amps-15 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4004+5 Volts / 15 Amps-5.2 Volts / 5 Amps+12 Volts / 2 Amps-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4005+5 Volts / 15 Amps-5.2 Volts / 5 Amps+15 Volts / 2 Amps-15 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4006+5 Volts / 15 Amps+12 Volts / 5 Amps+12 Volts / 2 Amps-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4007+5 Volts / 15 Amps+12 Volts / 5 Amps+15 Volts / 2 Amps-15 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4008+15 Volts / 5 Amps-15 Volts / 5 Amps+24 Volts / 1 Amp24 Volts / 1 Amp177.8 x 101.6 x 44.5mm
CE-150-4009+5 Volts / 15 Amps+12 Volts / 5 Amps+15 Volts / 2 Amps-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4011+5 Volts / 15 Amps+12 Volts / 5 Amps-5 Volts / 1 Amp-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4101+5 Volts / 15 Amps+24 Volts / 5 Amps+12 Volts / 2 Amps-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4102+5 Volts / 15 Amps+24 Volts / 5 Amps+15 Volts / 2 Amps-15 Volts / 2 Amps177.8 x 101.6 x 44.5mm
CE-150-4103IT+5 Volts / 15 Amps+24 Volts / 5 Amps+12 Volts / 2 Amps-12 Volts / 2 Amps177.8 x 101.6 x 44.5mm

Related Products

CFM150S-power-supply CFM150S-power-supply

CFM150S Series

Models & Information

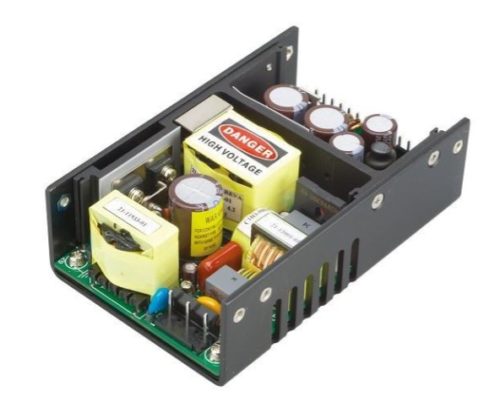

suu150-power-supply suu150-power-supply

SUU150 Series

Models & Information

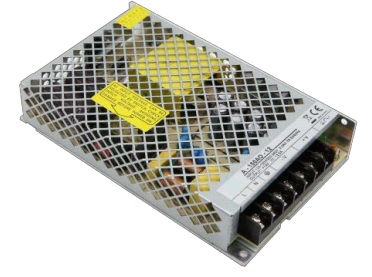

A-150FAO-Enclosed-Power-Supply A-150FAO-Enclosed-Power-Supply
