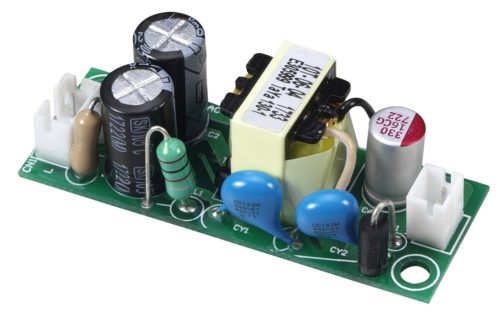

CFM06S-T-power-supply CFM06S-T-power-supply

CFM06S-T Series

CFM06S Series, 6 Watt Chassis Mounting Single Output Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input 90~264VAC
  • Approved IEC62368-1, UL62368-1, EN62368-1
  • Meets EN61558 (60335)
  • Continuous Short Circuit Protection
  • No Load Input Power < 75mW
  • Over Voltage Protection
  • Constant Current (Optional)
  • Chassis Mounting & Encapsulated Versions Available

Models and Ratings

ModelInput VACOutput VDCOutput CurrentSize
CFM06S033-T90~2643.3 Volts1.5 Amps39.5 x 19.40 x 18.30mm
CFM06S050-T90~2645 Volts1.2 Amps39.5 x 19.40 x 18.30mm
CFM06S090-T90~2649 Volts0.67 Amps39.5 x 19.40 x 18.30mm
CFM06S120-T90~26412 Volts0.5 Amps39.5 x 19.40 x 18.30mm
CFM06S150-T90~26415 Volts0.4 Amps39.5 x 19.40 x 18.30mm
CFM06S240-T90~26424 Volts0.25 Amps39.5 x 19.40 x 18.30mm
