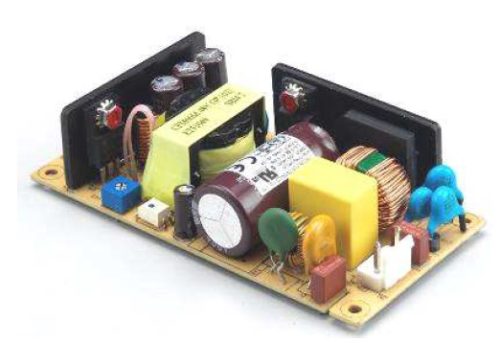

CFM60M Series

CFM60M Series, 60 Watt Medically Approved Chassis Mounting Single Output Power Supplies

Optional Metal Safety Cover Available

Request a quote Download Datasheet

Features

  • Universal Input Range 90~264 VAC
  • 2”x 4” Size
  • Efficiency to 90%
  • No Load Power Consumption<0.5W
  • Continuous Short Circuit Protection
  • Meets EN55011 and EN55032 Class B
  • IEC/EN/UL 60601-1 2MOPP Approval
  • Meets IEC/EN60335-1
  • Meets Class I

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM60M050 90~264 5 Volts 8 Amps 101.6 x 50.8 x 27.94mm
CFM60M120 90~264 12 Volts 5 Amps 101.6 x 50.8 x 27.94mm
CFM60M150 90~264 15 Volts 4 Amps 101.6 x 50.8 x 27.94mm
CFM60M240 90~264 24 Volts 2.5 Amps 101.6 x 50.8 x 27.94mm
CFM60M480 90~264 48 Volts 1.25 Amps 101.6 x 50.8 x 27.94mm

Related Products

GRN60S-power-supply GRN60S-power-supply

GRN60S Series

Models & Information
nxt100-power-supply nxt100-power-supply

NXT100 Series

Models & Information
grn80m-open-frame-power-supply grn80m-open-frame-power-supply

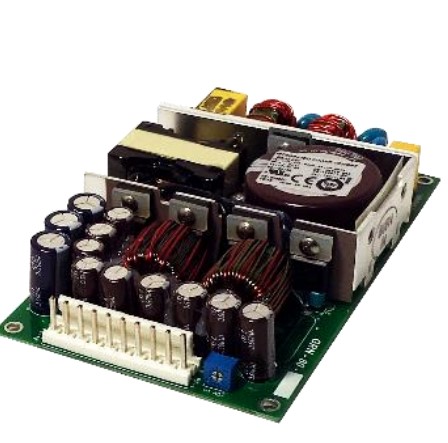

GRN80M Open Frame Series
