CFM81S-power-supply

CFM81S-P Series

Home | Products | PCB Mounting Open Frame | CFM81S-P Series

CFM81S Series, 80 Watt Chassis Mounting Single Output Power Supplies

Request a quote Download Datasheet

Universal Input Range 90~264 VAC
High Efficiency up to 91%
2”x 3” Open Frame Compact Size
No Load Power <0.3W
Approval IEC/EN/UL 62368-1
Approval IEC/EN 60335-1
Approval EN55032 Class B and CISPR/FCC Class B
Operating Altitude 5000m
Peak Load (2 Times Rated Current)

Models and Ratings

Model	Input VAC	Output VDC	Output Current	Size
CFM81S120-P	90~264	12 Volts	6.7 Amps	76.2 x 50.8 x 35.9mm
CFM81S150-P	90~264	15 Volts	5.36 Amps	76.2 x 50.8 x 35.9mm
CFM81S240-P	90~264	24 Volts	3.35 Amps	76.2 x 50.8 x 35.9mm
CFM81S480-P	90~264	48 Volts	1.67 Amps	76.2 x 50.8 x 35.9mm

Related Products

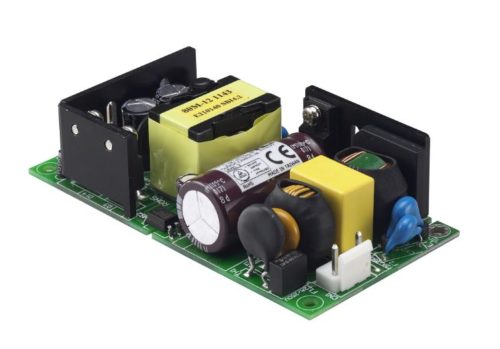

cfm80S-power-series

CFM80S Series

Models & Information

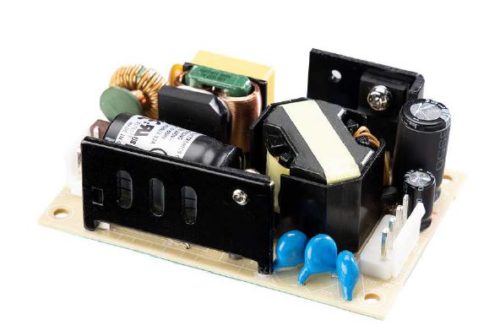

CFM70S-power-supply
