NXT400 Series

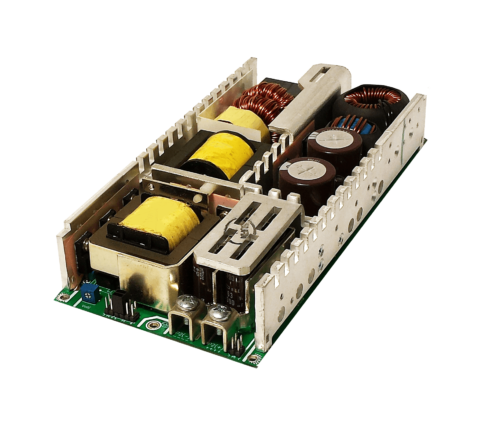

NXT400 Series, 400 Watt Single Output Power Supplies

Request a quote Download Datasheet

Features

  • Compact 3.9” x 8” x 1.5” Size
  • Universal 85-264V Input
  • Power Fail Warning
  • 0-70°C Operating Temperature
  • IEC 60601-1 3rd ed. Medical Cert
  • IEC 62368-1 2nd ed. Cert
  • IEC 60601-1- 2 4th ed. EMC
  • Optional Single Wire Load Sharing
  • Optional Remote Inhibit/Enable
  • Optional Chassis/Cover

Models and Ratings

Model Input VAC Output VDC Output Current Size
NXT-400-1001 90~264 2.5 Volts 80 Amps 203.2 x 98.5 x 38.1mm
NXT-400-1002 90~264 3.3 Volts 80 Amps 203.2 x 98.5 x 38.1mm
NXT-400-1003 90~264 5 Volts 80 Amps 203.2 x 98.5 x 38.1mm
NXT-400-1004 90~264 12 Volts 33.3 Amps 203.2 x 98.5 x 38.1mm
NXT-400-1005 90~264 15 Volts 26.7 Amps 203.2 x 98.5 x 38.1mm
NXT-400-1006 90~264 24 Volts 16.7 Amps 203.2 x 98.5 x 38.1mm
NXT-400-1007 90~264 28 Volts 14.3 Amps 203.2 x 98.5 x 38.1mm
NXT-400-1008 90~264 48 Volts 8.3 Amps 203.2 x 98.5 x 38.1mm
