CQB100W Series, 100 Watt DC-DC Converter

4:1 Input Range

1500 VDC Isolation

Quarter Brick

Request a quote Download Datasheet

100W Isolated Output
Efficiency to 88%
Industry Standard Quarter-Brick Package
Input Under Voltage Protection
4:1 Input Range
Over Temperature Protection
Over Voltage/Current Protection
Regulated Outputs
Remote On/Off
Safety Meets IEC/EN/UL62368-1

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size
CQB100W-24S3V3	9~36 Volts	3.3 Volts	30 Amps	36.8 x 57.9 x 12.7mm
CQB100W-24S05	9~36 Volts	5 Volts	20 Amps	36.8 x 57.9 x 12.7mm
CQB100W-24S12	9~36 Volts	12 Volts	8.3 Amps	36.8 x 57.9 x 12.7mm
CQB100W-24S15	9~36 Volts	15 Volts	6.7 Amps	36.8 x 57.9 x 12.7mm
CQB100W-24S24	9~36 Volts	24 Volts	4.17 Amps	36.8 x 57.9 x 12.7mm

CQB100W-48S3V3	18~75 Volts	3.3 Volts	30 Amps	36.8 x 57.9 x 12.7mm
CQB100W-48S05	18~75 Volts	5 Volts	20 Amps	36.8 x 57.9 x 12.7mm
CQB100W-48S12	18~75 Volts	12 Volts	8.3 Amps	36.8 x 57.9 x 12.7mm
CQB100W-48S15	18~75 Volts	15 Volts	6.7 Amps	36.8 x 57.9 x 12.7mm
CQB100W-48S24	18~75 Volts	24 Volts	4.17 Amps	36.8 x 57.9 x 12.7mm

Related Products

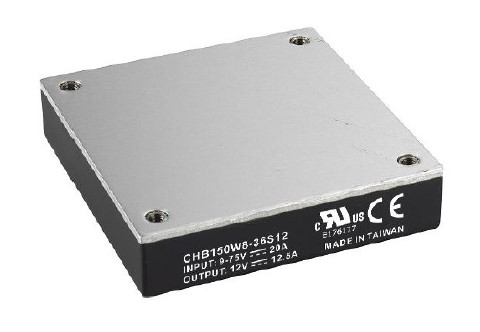

chb150w8-dcdc-converter

CHB150W8

Models & Information

CHB75W-DCDC-CONVERTER

CHB75W

Models & Information

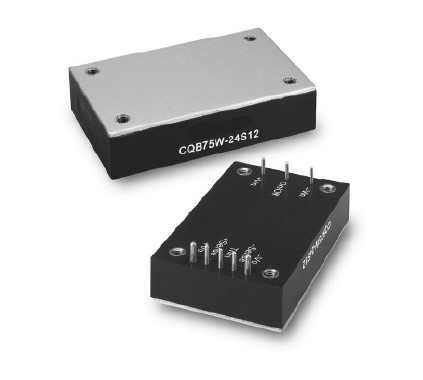

CQB75W-dcdc-converter
