CQB75W-dcdc-converter

CQB75W

Home | Products | Low Input - up to 76 Volts | CQB75W

CQB75W Series, 75 Watt DC-DC Converter

4:1 Input Range

1500 VDC Isolation

Quarter Brick

Request a quote Download Datasheet

39.6-75W Isolated Output
Efficiency to 87%
Industry Standard Quarter-Brick Package
Fixed Switching Frequency
4:1 Input Range
Regulated Outputs
Continuous Short Circuit Protection
Safety Meets IEC/EN/UL62368-1

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size
CQB75W-24S3V3	9~36 Volts	3.3 Volts	12 Amps	36.8 x 57.9 x 12.7mm
CQB75W-24S05	9~36 Volts	5 Volts	12 Amps	36.8 x 57.9 x 12.7mm
CQB75W-24S12	9~36 Volts	12 Volts	6.25 Amps	36.8 x 57.9 x 12.7mm
CQB75W-24S15	9~36 Volts	15 Volts	5 Amps	36.8 x 57.9 x 12.7mm
CQB75W-24S24	9~36 Volts	24 Volts	3.12 Amps	36.8 x 57.9 x 12.7mm

CQB75W-48S3V3	18~75 Volts	3.3 Volts	12 Amps	36.8 x 57.9 x 12.7mm
CQB75W-48S05	18~75 Volts	5 Volts	12 Amps	36.8 x 57.9 x 12.7mm
CQB75W-48S12	18~75 Volts	12 Volts	6.25 Amps	36.8 x 57.9 x 12.7mm
CQB75W-48S15	18~75 Volts	15 Volts	5 Amps	36.8 x 57.9 x 12.7mm
CQB75W-48S24	18~75 Volts	24 Volts	3.12 Amps	36.8 x 57.9 x 12.7mm

Related Products

chb150w8-dcdc-converter

CHB150W8

Models & Information

chb50w-dcdc-converter

CHB50W

Models & Information

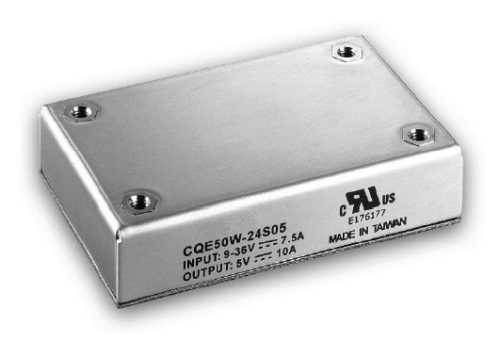

cqe50w-dcdc-converter
