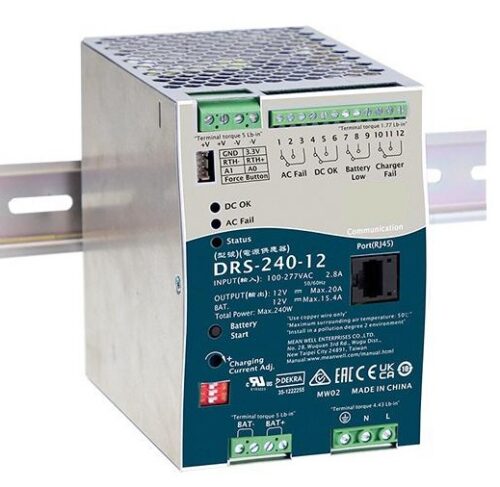

DRS-240 SERIES

DIN Rail Mounting Battery Back Up Power Supply

Main Output To Power Your Equipment & Separate Battery Charger Output

Request a quote Download Datasheet

Universal Input 90~305VAC (277VAC available)
All-In-One Function With Power supply, DC-UPS, Battery Charger And Status Monitoring In ONE Compact Unit
Signal And Alarms Design Meet UL2524, NFPA 1221, BS EN/EN54-4 And GB17945 Requirement, With Adjustable Parameters Configurable By Communication Interface
Form C Relay Contacts And LED Indicators For AC Fail, Battery Low, Charger Fail, And DC-OK
Load-Dependent High Speed Battery Charging
Built-In MODBus Protocol or CANBus
Protections: Short Circuit/ Overload/ Over Voltage/ Over Temperature(Auto Derating) / Battery Reverse Polarity (No Damage) / Battery Cut Off
Battery Low Protection / Battery Reverse Polarity Protection
-30 ~ +70°C Wide Operating Temperature
Cooling By Free Air Convection
Can Be Installed On DIN Rail TS-35/7.5 Or 15
Charging Curve Can Be Set With SBP-001 (CANBus Model)
20~100% Charging Current Adjustable By VR
2 or 3-Stage Selectable By DIP S.W
Suitable For Lead Acid And Lithium-Ion Batteries
3 Years Warranty

Model	Input VAC	Output VDC	Output Current	Size
DRS-240-12	90~305 Volts	12 Volts	20 Amps	85.5 x 125.2 x 129.2mm
DRS-240-24	90~305 Volts	24 Volts	10 Amps	85.5 x 125.2 x 129.2mm
DRS-240-36	90~305 Volts	36 Volts	6.6 Amps	85.5 x 125.2 x 129.2mm
DRS-240-48	90~305 Volts	48 Volts	5 Amps	85.5 x 125.2 x 129.2mm
