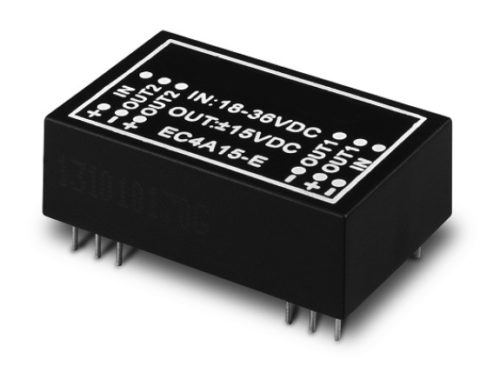

ec4a15-e-dcdc-converter

EC4A-E-6 Watt

Home | Products | Through Hole DC-DC Converters | EC4A-E-6 Watt

EC4A-E Series, 6 Watt Through Hole DC-DC Converter

24 Pin DIL Package

Up to 3000 VDC High Isolation

Regulated Single and Dual Output

Request a quote Download Datasheet

2"x 1" Input Range
6 Watt Isolated Output
Up to 3000 VDC
Continuous Short Circuit Protection
Efficiency up to 87 %
EMI Complies with EN55032 Class A
Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (24 Pin DIL)
EC4A07x-E	9~18 Volts	3.3 Volts	1200mA	31.8 x 20.3 x 10.2mm
EC4A01x-E	9~18 Volts	5 Volts	1000mA	31.8 x 20.3 x 10.2mm
EC4A02x-E	9~18 Volts	12 Volts	500mA	31.8 x 20.3 x 10.2mm
EC4A03x-E	9~18 Volts	15 Volts	400mA	31.8 x 20.3 x 10.2mm

EC4A17x-E	18~36 Volts	3.3 Volts	1200mA	31.8 x 20.3 x 10.2mm
EC4A11x-E	18~36 Volts	5 Volts	1000mA	31.8 x 20.3 x 10.2mm
EC4A12x-E	18~36 Volts	12 Volts	500mA	31.8 x 20.3 x 10.2mm
EC4A13x-E	18~36 Volts	15 Volts	400mA	31.8 x 20.3 x 10.2mm

EC4A27x-E	36~72 Volts	3.3 Volts	1200mA	31.8 x 20.3 x 10.2mm
EC4A21x-E	36~72 Volts	5 Volts	1000mA	31.8 x 20.3 x 10.2mm
EC4A22x-E	36~72 Volts	12 Volts	500mA	31.8 x 20.3 x 10.2mm
EC4A23x-E	36~72 Volts	15 Volts	400mA	31.8 x 20.3 x 10.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (24 Pin DIL)
EC4A06x-E	9~18 Volts	+5 Volts / +500mA	-5 Volts / -500mA	31.8 x 20.3 x 10.2mm
EC4A04x-E	9~18 Volts	+12 Volts / +250mA	-12 Volts / -250mA	31.8 x 20.3 x 10.2mm
EC4A05x-E	9~18 Volts	+15 Volts / +100mA	-15 Volts / -100mA	31.8 x 20.3 x 10.2mm

EC4A16x-E	18~36 Volts	+5 Volts / +500mA	-5 Volts / -500mA	31.8 x 20.3 x 10.2mm
EC4A14x-E	18~36 Volts	+12 Volts / +250mA	-12 Volts / -250mA	31.8 x 20.3 x 10.2mm
EC4A15x-E	18~36 Volts	+15 Volts / +200mA	-15 Volts / -200mA	31.8 x 20.3 x 10.2mm

EC4A26x-E	36~72 Volts	+5 Volts / +500mA	-5 Volts / -500mA	31.8 x 20.3 x 10.2mm
EC4A24x-E	36~72 Volts	+12 Volts / +250mA	-12 Volts / -250mA	31.8 x 20.3 x 10.2mm
EC4A25x-E	36~72 Volts	+15 Volts / +200mA	-15 Volts / -200mA	31.8 x 20.3 x 10.2mm
