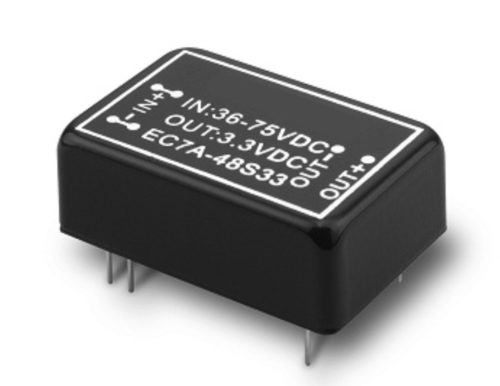

ec7a-dcdc-converter

EC7A-10 Watt

Home | Products | Through Hole DC-DC Converters | EC7A-10 Watt

EC7A Series, 10 Watt Through Hole DC-DC Converter

24 Pin DIL Package

1500 VDC Isolation

Regulated Single and Dual Output

Request a quote Download Datasheet

2"x 1" Input Range
10 Watt Isolated Output
1500 VDC Isolation
Continuous Short Circuit Protection
Efficiency up to 89 %
Without Tantalum Capacitor Inside
Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (24 Pin DIL)
EC7A-12S25	9~18 Volts	2.5 Volts	3000mA
EC7A-12S33	9~18 Volts	3.3 Volts	3000mA	31.8 x 20.3 x 10.2mm
EC7A-12S05	9~18 Volts	5 Volts	2000mA	31.8 x 20.3 x 10.2mm
EC7A-12S12	9~18 Volts	12 Volts	835mA	31.8 x 20.3 x 10.2mm
EC7A-12S15	9~18 Volts	15 Volts	666mA	31.8 x 20.3 x 10.2mm

EC7A-24S25	18~36 Volts	2.5 Volts	3000mA
EC7A-24S33	18~36 Volts	3.3 Volts	3000mA	31.8 x 20.3 x 10.2mm
EC7A-24S05	18~36 Volts	5 Volts	2000mA	31.8 x 20.3 x 10.2mm
EC7A-24S12	18~36 Volts	12 Volts	835mA	31.8 x 20.3 x 10.2mm
EC7A-24S15	18~36 Volts	15 Volts	666mA	31.8 x 20.3 x 10.2mm

EC7A-48S25	36~72 Volts	2.5 Volts	3000mA
EC7A-48S33	36~72 Volts	3.3 Volts	3000mA	31.8 x 20.3 x 10.2mm
EC7A-48S05	36~72 Volts	5 Volts	2000mA	31.8 x 20.3 x 10.2mm
EC7A-48S12	36~72 Volts	12 Volts	835mA	31.8 x 20.3 x 10.2mm
EC7A-48S15	36~72 Volts	15 Volts	666mA	31.8 x 20.3 x 10.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (24 Pin DIL)
EC7A-12D12	9~18 Volts	+12 Volts / +416mA	-12 Volts / -416mA	31.8 x 20.3 x 10.2mm
EC7A-12D15	9~18 Volts	+15 Volts / +333mA	-15 Volts / -333mA	31.8 x 20.3 x 10.2mm

EC7A-24D12	18~36 Volts	+12 Volts / +416mA	-12 Volts / -416mA	31.8 x 20.3 x 10.2mm
EC7A-24D12	18~36 Volts	+15 Volts / +333mA	-15 Volts / -333mA	31.8 x 20.3 x 10.2mm

EC7A-48D12	36~72 Volts	+12 Volts / +416mA	-12 Volts / -416mA	31.8 x 20.3 x 10.2mm
EC7A-48D15	36~72 Volts	+15 Volts / +333mA	-15 Volts / -333mA	31.8 x 20.3 x 10.2mm

Related Products

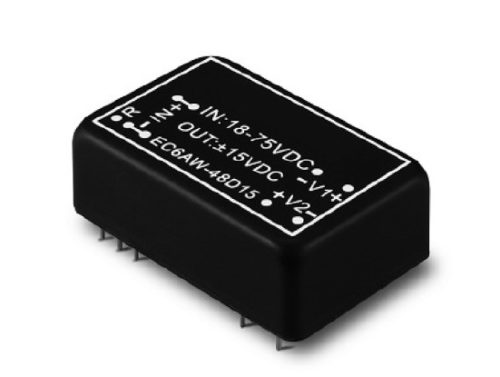

ec6aw dcdc converter

EC6AW-8 Watt

Models & Information

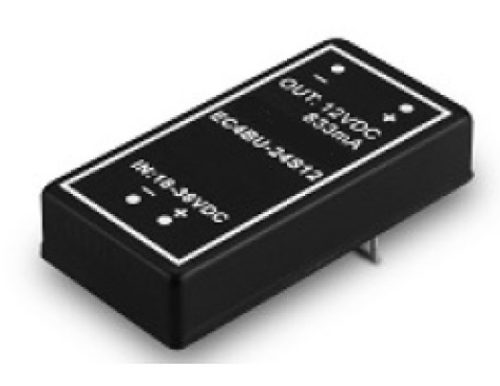

ec4bu-dcdc-converter

EC4BU-10 Watt

Models & Information

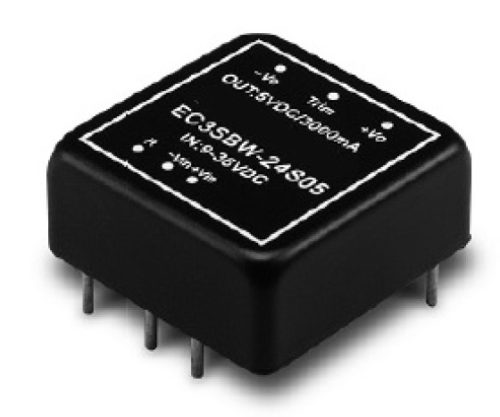

EC3SBW-DCDC-CONVERTER

EC3SBW-15 Watt

Models & Information

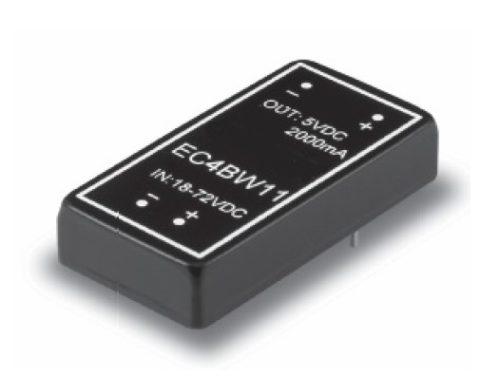

EC4BW-10WATT-DCDC-CONVERTER
