GRN360S Series

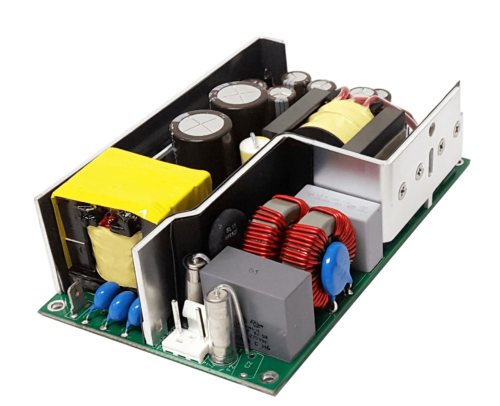

GRN360S Series, 360 Watt Single output Power Supplies

Request a quote Download Datasheet

Features

  • Compact 3” x 5” x 1.49” Size
  • Single Outputs
  • <500mW No Load Input Power
  • 60601-1 3rd ed Medical Approval
  • 62368-1 2nd ed ITE Approval
  • IEC 60601-1-2 4th ed. EMC
  • -20 ~ 70°C Operating Temperature
  • Class B Emissions per EN55011/32
  • Optional Fan Supply - 12A/0.6A

Models and Ratings

Model Input VAC Output VDC Output Current Size
GRN-360-1001 90~264 12 Volts 30 Amps 127 x 76.07 x 37.84mm
GRN-360-1002 90~264 15 Volts 24 Amps 127 x 76.07 x 37.84mm
GRN-360-1003 90~264 18 Volts 20 Amps 127 x 76.07 x 37.84mm
GRN-360-1004 90~264 24 Volts 15 Amps 127 x 76.07 x 37.84mm
GRN-360-1005 90~264 36 Volts 10 Amps 127 x 76.07 x 37.84mm
GRN-360-1006 90~264 48 Volts 7.5 Amps 127 x 76.07 x 37.84mm
GRN-360-1007 90~264 56 Volts 6.4 Amps 127 x 76.07 x 37.84mm
