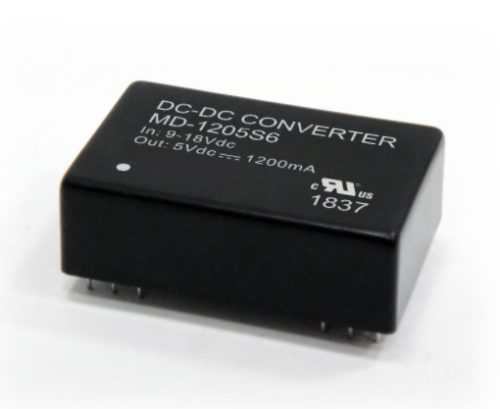

md-6w-dcdc-converter md-6w-dcdc-converter

MD-6 Watt

MD-6W Series, 6 Watt Through Hole DC-DC Converter

24 Pin DIL  Package

Up to 3000 VDC High Isolation

2:1 Input Range

Regulated Single and Dual Output

Request a quote Download Datasheet

Features

  • 2:1 Input Range
  • Full SMD Technology
  • Up to 3000 VDC
  • Continuous Short Circuit Protection
  • Efficiency up to 85 %
  • EMI Complies with EN55032 Class A without external components
  • -40°C ~ +85°C Operating Temperature Range

Models and Ratings

Model Input VDC Output VDC Output Current Size (24 Pin DIL)
MD-123R3S6 9~18 Volts 3.3 Volts 1400mA 31.75 x 20.32 x 10.16mm
MD-1205S6 9~18 Volts 5 Volts 1200mA 31.75 x 20.32 x 10.16mm
MD-1212S6 9~18 Volts 12 Volts 500mA 31.75 x 20.32 x 10.16mm
MD-1215S6 9~18 Volts 15 Volts 400mA 31.75 x 20.32 x 10.16mm
MD-1224S6 9~18 Volts 24 Volts 250mA 31.75 x 20.32 x 10.16mm
MD-243R3S6 18~36 Volts 3.3 Volts 1400mA 31.75 x 20.32 x 10.16mm
MD-2405S6 18~36 Volts 5 Volts 1200mA 31.75 x 20.32 x 10.16mm
MD-2412S6 18~36 Volts 12 Volts 500mA 31.75 x 20.32 x 10.16mm
MD-2415S6 18~36 Volts 15 Volts 400mA 31.75 x 20.32 x 10.16mm
MD-2424S6 18~36 Volts 24 Volts 250mA 31.75 x 20.32 x 10.16mm
MD-483R3S6 36~75 Volts 3.3 Volts 1400mA 31.75 x 20.32 x 10.16mm
MD-4805S6 36~75 Volts 5 Volts 1200mA 31.75 x 20.32 x 10.16mm
MD-4812S6 36~75 Volts 12 Volts 500mA 31.75 x 20.32 x 10.16mm
MD-4815S6 36~75 Volts 15 Volts 400mA 31.75 x 20.32 x 10.16mm
MD-4824S6 36~75 Volts 24 Volts 250mA 31.75 x 20.32 x 10.16mm

Dual Output Models

Model Input VDC Output 1 Output 2 Size (24 Pin DIL)
MD-123R3D6 9~18 Volts +3.3 Volts / +909mA -3.3 Volts / -909mA 31.75 x 20.32 x 10.16mm
MD-1205D6 9~18 Volts +5 Volts / +600mA -5 Volts / -600mA 31.75 x 20.32 x 10.16mm
MD-1212D6 9~18 Volts +12 Volts / +250mA -12 Volts / -250mA 31.75 x 20.32 x 10.16mm
MD-1215D6 9~18 Volts +15 Volts / +200mA -15 Volts / -200mA 31.75 x 20.32 x 10.16mm
MD-1224D6 9~18 Volts +24 Volts / +125mA -24 Volts / -125mA 31.75 x 20.32 x 10.16mm
MD-243R3D6 18~36 Volts +3.3 Volts / +909mA -3.3 Volts / -909mA 31.75 x 20.32 x 10.16mm
MD-2405D6 18~36 Volts +5 Volts / +600mA -5 Volts / -600mA 31.75 x 20.32 x 10.16mm
MD-2412D6 18~36 Volts +12 Volts / +250mA -12 Volts / -250mA 31.75 x 20.32 x 10.16mm
MD-2415D6 18~36 Volts +15 Volts / +200mA -15 Volts / -200mA 31.75 x 20.32 x 10.16mm
MD-2424D6 18~36 Volts +24 Volts / +125mA -24 Volts / -125mA 31.75 x 20.32 x 10.16mm
MD-483R3D6 36~75 Volts +3.3 Volts / +909mA -3.3 Volts / -909mA 31.75 x 20.32 x 10.16mm
MD-4805D6 36~75 Volts +5 Volts / +600mA -5 Volts / -600mA 31.75 x 20.32 x 10.16mm
MD-4812D6 36~75 Volts +12 Volts / +250mA -12 Volts / -250mA 31.75 x 20.32 x 10.16mm
MD-4815D6 36~75 Volts +15 Volts / +200mA -15 Volts / -200mA 31.75 x 20.32 x 10.16mm
MD-4824D6 36~75 Volts +24 Volts / +125mA -24 Volts / -125mA 31.75 x 20.32 x 10.16mm
