MQF240U Series

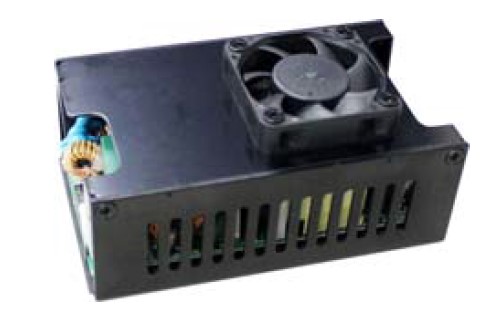

MQF240U Series, 240 Watt, U-Channel, Single Output, Medically Approved Power Supply


  • Universal Input 90-264 VAC
  • 160W Cooling by Free Air Convection
  • 240 Watt with 10CFM Forced Air
  • 4000VAC Input to Output 2MOPP Insulation
  • High Efficiency up to 94%
  • With P.F.C. Function >0.9
  • <0.5W No Load Input Power
  • Built-in 12V / 0.5A Fan Supply
  • EMI for Both Class I (with PE) and Class II (without PE) Configuration
  • Suitable for BF Application with Appropriate System Consideration
  • UL / IEC / EN 60601 3.1 Edition & UL / IEC / EN 60950 AM2 Safety Approvals
  • 3-Year Product Warranty

Models and Ratings

ModelInput VACOutput VDCOutput CurrentSize
MQF240U-12S-AP90~26412 Volts20 Amps104 x 62 x 39.2mm
MQF240U-15S-AP90~26415 Volts16 Amps104 x 62 x 39.2mm
MQF240U-24S-AP90~26424 Volts10 Amps104 x 62 x 39.2mm
MQF240U-48S-AP90~26448 Volts5 Amps104 x 62 x 39.2mm
