NXT400M Series

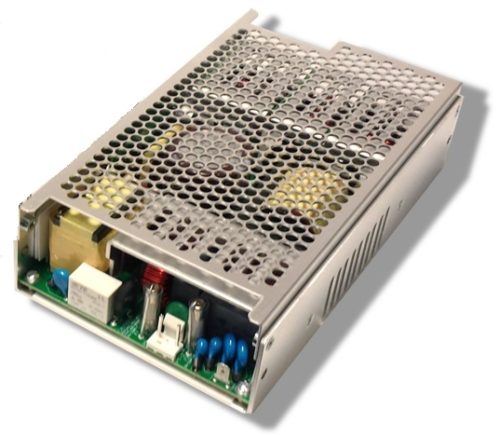

NXT400M Series, Enclosed Dual, Triple & Quad output Power Supplies

Request a quote Download Datasheet

Features

  • Universal 85-264V Input
  • 2-4 Regulated & Adjustable Outputs
  • <300mW No Load Input Power
  • -20 to +70°C Operating Temperature
  • IEC 60601-1 3rd ed. Medical Approval
  • IEC 62368-1 2nd ed. Approval
  • IEC 60601-1-2 4th ed. EMC
  • Optional 5V/2A Standby Output

Models and Ratings

Model Input VAC Output 1 Output 2 Output 3 Output 4 Size
NXT-400M-2001-CHCO 85~264 5 Volts / 50 Amps 24-28 Volts / 5 Amps 180 x 106.17 x 45.71mm
NXT-400M-2002-CHCO 85~264 5 Volts / 50 Amps 12-15 Volts / 10 Amps 180 x 106.17 x 45.71mm
NXT-400M-2003-CHCO 85~264 12 Volts / 25 Amps -12-15 Volts / 10 Amps 180 x 106.17 x 45.71mm
NXT-400M-2004-CHCO 85~264 15 Volts / 20 Amps -12-15 Volts / 10 Amps 180 x 106.17 x 45.71mm
NXT-400M-3001-CHCO 85~264 5 Volts / 50 Amps 12-15 Volts / 10 Amps -12-15 Volts / 5 Amps 180 x 106.17 x 45.71mm
NXT-400M-4001-CHCO 85~264 3.3 Volts / 50 Amps 3.3-5 Volts / 15 Amps 12-15 Volts / 5 Amps -12-15 Volts / 5 Amps 180 x 106.17 x 45.71mm
NXT-400M-4002-CHCO 85~264 5 Volts / 50 Amps 3.3-5 Volts / 15 Amps 12-15 Volts / 5 Amps -12-15 Volts / 5 Amps 180 x 106.17 x 45.71mm
NXT-400M-4003-CHCO 85~264 5 Volts / 50 Amps 12-15 Volts / 10 Amps 12-15 Volts / 5 Amps -12-15 Volts / 5 Amps 180 x 106.17 x 45.71mm
NXT-400M-4004-CHCO 85~264 5 Volts / 50 Amps 24-28 Volts / 5 Amps 12-15 Volts / 5 Amps -12-15 Volts / 5 Amps 180 x 106.17 x 45.71mm
NXT-400M-4005-CHCO 85~264 24 Volts / 12.5 Amps -24-28 Volts / 5 Amps 12-15 Volts / 5 Amps -12-15 Volts / 5 Amps 180 x 106.17 x 45.71mm
