rsd100-rail-dcdc rsd100-rail-dcdc

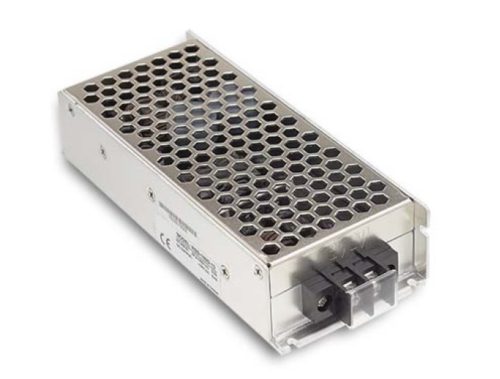

RSD-100

RSD-100 Series, 100 Watt Railway approved DC-DC Converter

Request a quote Download Datasheet

Features

  • Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
  • Ultra compact and 1U low profile (36mm)
  • 2:1 wide input range
  • 4000 VDC Isolation
  • Half encapsulated, cooling by free air convection
  • -40~+70C wide working temperature
  • Built-in constant current limiting circuit
  • LED indicator for power on
  • 3 year warranty

Models and Ratings

Model Input VDC Output VDC Output Current Size
RSD-100B-5 16.8~31.2 Volts 5 Volts 20 Amps 161 x 68 x 36mm
RSD-100B-12 16.8~31.2 Volts 12 Volts 8.4 Amps 161 x 68 x 36mm
RSD-100B-24 16.8~31.2 Volts 24 Volts 4.2 Amps 161 x 68 x 36mm
RSD-100C-5 33.6~62.4 Volts 5 Volts 20 Amps 161 x 68 x 36mm
RSD-100C-12 33.6~62.4 Volts 12 Volts 8.4 Amps 161 x 68 x 36mm
RSD-100C-24 33.6~62.4 Volts 24 Volts 4.2 Amps 161 x 68 x 36mm
RSD-100D-5 67.2~143 Volts 5 Volts 20 Amps 161 x 68 x 36mm
RSD-100D-12 67.2~143 Volts 12 Volts 8.4 Amps 161 x 68 x 36mm
RSD-100D-24 67.2~143 Volts 24 Volts 4.2 Amps 161 x 68 x 36mm
