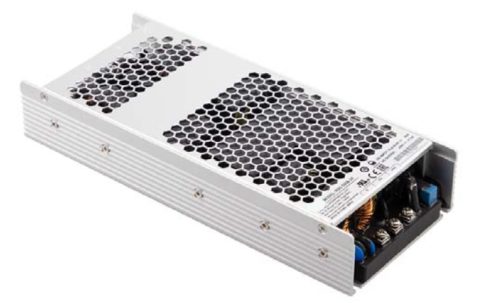

RSD-500

RSD-500 Series, 500 Watt Railway approved DC-DC Converter

Features

  • Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
  • Ultra compact and 1U low profile (41mm)
  • 2:1 wide input range
  • 4000 VDC Isolation (reinforced isolation)
  • Fanless Design, half encapsulated, cooling by free air convection
  • -40~+80C wide working temperature
  • Built-in constant current limiting circuit
  • LED indicator for power on
  • 3 year warranty

Models and Ratings

ModelInput VDCOutput VDCOutput CurrentSize
RSD-500B-1216.8~33.6 Volts12 Volts35 Amps237 x 100 x 41mm
RSD-500B-2416.8~33.6 Volts24 Volts17.5 Amps237 x 100 x 41mm
RSD-500B-4816.8~33.6 Volts48 Volts8.8 Amps237 x 100 x 41mm
RSD-500C-1233.6~67.2 Volts12 Volts35 Amps237 x 100 x 41mm
RSD-500C-2433.6~67.2 Volts24 Volts19.2 Amps237 x 100 x 41mm
RSD-500C-4833.6~67.2 Volts48 Volts9.6 Amps237 x 100 x 41mm
RSD-500D-1267.2~154 Volts12 Volts35 Amps237 x 100 x 41mm
RSD-500D-2467.2~154 Volts24 Volts20.8 Amps237 x 100 x 41mm
RSD-500D-4867.2~154 Volts48 Volts10.4 Amps237 x 100 x 41mm
