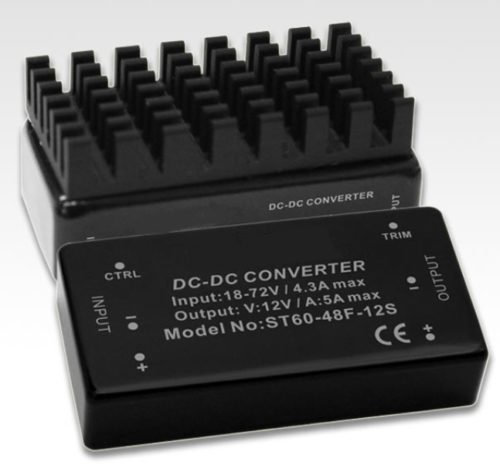

ST60F-60 Watts

ST60 Series, 60 Watt Encapsulated DC-DC Converter

Wide 4:1 Input Range

1600 VDC Isolation

2″x 1″ Package

Optional Heat-sink – add Suffix ‘X’

Features

  • Ultra Wide 4:1 Input Range
  • High Efficiency up to 91%
  • Remote ON/OFF Control
  • Operating Temperature: -40°C…+80°C (with derating)
  • Regulated Outputs
  • Optional Screw Terminal Adaptor
  • Protections: Over Voltage / Over Temperature / Short Circuit All by Auto-recovery
  • 3-Years Product Warranty

Models and Ratings

ModelInput VDCOutput VDCOutput CurrentSize
ST60-24F-12S9~36 Volts12 Volts5000mA52.8 x 27.5 x 13.2mm
ST60-24F-15S9~36 Volts15 Volts4000mA52.8 x 27.5 x 13.2mm
ST60-24F-24S9~36 Volts24 Volts2500mA52.8 x 27.5 x 13.2mm
ST60-48F-12S18~75 Volts12 Volts5000mA52.8 x 27.5 x 13.2mm
ST60-48F-15S18~75 Volts15 Volts4000mA52.8 x 27.5 x 13.2mm
ST60-48F-24S18~75 Volts24 Volts2500mA52.8 x 27.5 x 13.2mm
