SUU120 Series

Home | Products | U Channel | SUU120 Series

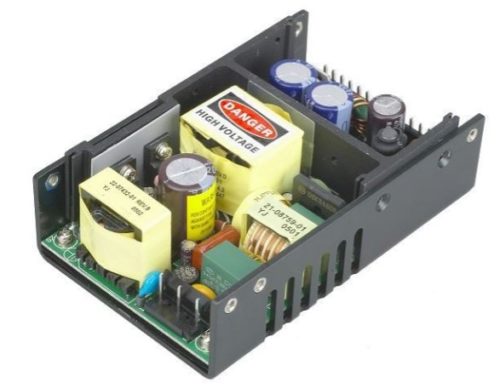

SUU120 Series, 120 Watts, Single, Dual & Triple Output U-Channel Power Supply

Request a quote Download Datasheet

Wide Operating Voltage 90 to 264 VAC,47 to 63 Hz
Internal EMI filter
Crowbar Mode Over Voltage Protection
Single, Dual and Triple Output
Active Power Factor Correction
Class I system
3 year warranty
Output 3 On Some Models Have A Positive or Negative Polarity

Models and Ratings

Model	Input VAC	Output 1	Output 2	Output 3	Size
SUU120-102	90~264	5~6 Volts / 22 Amps			127 x 81.6 x 39.2mm
SUU120-104	90~264	9~11 Volts / 13.33 Amps			127 x 81.6 x 39.2mm
SUU120-105	90~264	11~13 Volts / 10.9 Amps			127 x 81.6 x 39.2mm
SUU120-106	90~264	13~16 Volts / 9.23 Amps			127 x 81.6 x 39.2mm
SUU120-107	90~264	16~21 Volts / 7.5 Amps			127 x 81.6 x 39.2mm
SUU120-108	90~264	21~27 Volts / 5.71 Amps			127 x 81.6 x 39.2mm
SUU120-109	90~264	27~33 Volts / 4.44 Amps			127 x 81.6 x 39.2mm
SUU120-110	90~264	33~40 Volts / 3.63 Amps			127 x 81.6 x 39.2mm
SUU120-111	90~264	40~50 Volts / 3 Amps			127 x 81.6 x 39.2mm

SUU120-201	90~264	5 Volts / 15 Amps	12 Volts / 6 Amps		127 x 81.6 x 39.2mm
SUU120-203	90~264	5 Volts / 15 Amps	24 Volts / 3.5 Amps		127 x 81.6 x 39.2mm
SUU120-219	90~264	28 Volts / 3.92 Amps	5 Volts / 2 Amps		127 x 81.6 x 39.2mm

SUU120-300	90~264	3.3 Volts / 15 Amps	12 Volts / 6 Amps	12 Volts / 0.8 Amps	127 x 81.6 x 39.2mm
SUU120-301	90~264	5 Volts / 15 Amps	12 Volts / 6 Amps	5 Volts / 0.8 Amps	127 x 81.6 x 39.2mm
SUU120-302	90~264	5 Volts / 15 Amps	12 Volts / 6 Amps	12 Volts / 0.8 Amps	127 x 81.6 x 39.2mm
SUU120-303	90~264	5 Volts / 15 Amps	15 Volts / 6 Amps	15 Volts / 0.8 Amps	127 x 81.6 x 39.2mm
SUU120-304	90~264	5 Volts / 15 Amps	24 Volts / 3.5 Amps	24 Volts / 0.8 Amps	127 x 81.6 x 39.2mm
