TR220M Series

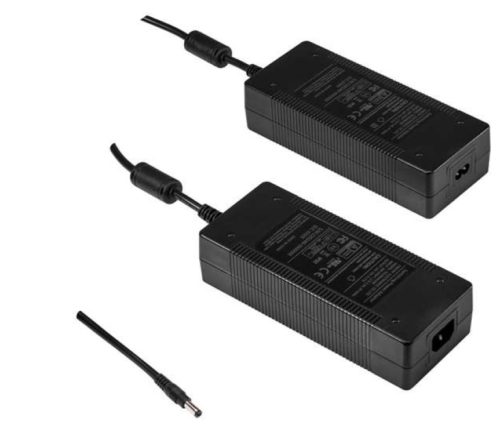

TR220M Series, Single Output, Medically Approved, Desktop Power Supplies

Features

  • Wide Operating Voltage 80 to 264 VAC,47 to 63 Hz
  • High Efficiency up to 94%
  • Class I (TR220MA), Class II (TR220MB)
  • No Load Input Power Consumption < 150mW
  • Approval IEC/EN/UL 60601-1 2 MOPP
  • Approval IEC/EN 60601-1-11 (TR220MB)
  • Approval EN55011 and CISPR/FCC Class B
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Meets CoC Tier 2 and DOE Level VI

Models and Ratings

ModelInput VACOutput VDCOutput CurrentSize
TR220M-x-12090~26412 Volts16.67 Amps180 x 75 x 44.5mm
TR220M-x-24090~26424 Volts9.17 Amps180 x 75 x 44.5mm
TR220M-x-36090~26436 Volts6.11 Amps180 x 75 x 44.5mm
TR220M-x-48090~26448 Volts4.58 Amps180 x 75 x 44.5mm
TR220M-x-56090~26456 Volts3.93 Amps180 x 75 x 44.5mm

Notes

*Suffix 'x' : A=3 Pole C14 IEC Inlet. or B = 2 Pole C8 IEC Inlet
