VM-30W Series

Home | Products | Encapsulated | VM-30W Series

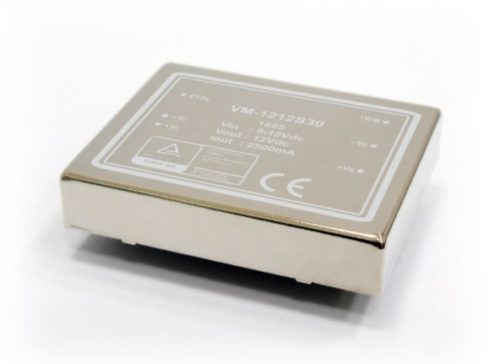

VM-30W Series, 30 Watt Through Hole DC-DC Converter

2×1.6″ Package

1500 VDC Isolation

2:1 Inputs

Single and Dual Output

Optional Heat-sink (Suffix ‘SK’)

Request a quote Download Datasheet

Wide 2:1 Input Range
Over Temperature Protection
Soft Start
Full SMD Technology
Efficiency up to 91 %
Adjustable Output Voltage
-40°C ~ +85°C Operating Temperature Range
Remote On/Off Control
Over Load Protection
Over Voltage Protection
1500 VDC Isolation

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (2x1.6")
VM-123R3S25	9~18 Volts	3.3 Volts	5500mA	50.8 x 40.6 x 10.2mm
VM-1205S25	9~18 Volts	5 Volts	5000mA	50.8 x 40.6 x 10.2mm
VM-1212S30	9~18 Volts	12 Volts	2500mA	50.8 x 40.6 x 10.2mm
VM-1215S30	9~18 Volts	15 Volts	2000mA	50.8 x 40.6 x 10.2mm

VM-243R3S25	18~36 Volts	3.3 Volts	5500mA	50.8 x 40.6 x 10.2mm
VM-2405S25	18~36 Volts	5 Volts	5000mA	50.8 x 40.6 x 10.2mm
VM-2412S30	18~36 Volts	12 Volts	2500mA	50.8 x 40.6 x 10.2mm
VM-2415S30	18~36 Volts	15 Volts	2000mA	50.8 x 40.6 x 10.2mm

VM-483R3S25	36~75 Volts	3.3 Volts	5500mA	50.8 x 40.6 x 10.2mm
VM-4805S25	36~75 Volts	5 Volts	5000mA	50.8 x 40.6 x 10.2mm
VM-4812S30	36~75 Volts	12 Volts	2500mA	50.8 x 40.6 x 10.2mm
VM-4815S30	36~75 Volts	15 Volts	2000mA	50.8 x 40.6 x 10.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (2x1.6")
VM-1212D30	9~18 Volts	+12 Volts / +1250mA	-12 Volts / -1250mA	50.8 x 40.6 x 10.2mm
VM-1215D30	9~18 Volts	+15 Volts / +1000mA	-15 Volts / -1000mA	50.8 x 40.6 x 10.2mm

VM-2412D30	18~36 Volts	+12 Volts / +1250mA	-12 Volts / -1250mA	50.8 x 40.6 x 10.2mm
VM-2415D30	18~36 Volts	+15 Volts / +1000mA	-15 Volts / -1000mA	50.8 x 40.6 x 10.2mm

VM-4812D30	36~72 Volts	+12 Volts / +1250mA	-12 Volts / -1250mA	50.8 x 40.6 x 10.2mm
VM-4815D30	36~72 Volts	+15 Volts / +1000mA	-15 Volts / -1000mA	50.8 x 40.6 x 10.2mm

Related Products

vn-20w-dcdc-converter

VN-20W Series

Models & Information

vt-50w-dcdc-converter

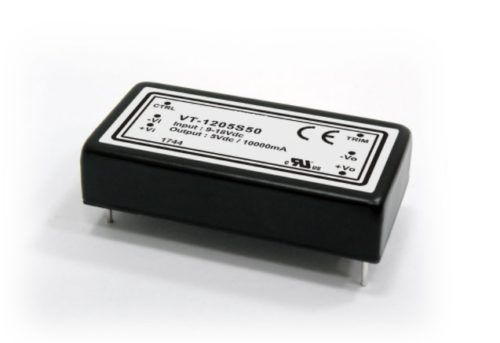

VT-50W Series

Models & Information

VTW30W-dcdc-converter

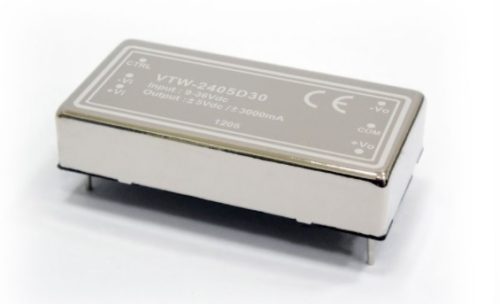

VTW-30W Series
