VN-15W Series

VN-15W Series, 15 Watt Through Hole DC-DC Converter

1×1″ Miniature Package

1600 VDC Isolation

2:1 Inputs

Single and Dual Output

Request a quote Download Datasheet

Features

  • Wide 2:1 Input Range
  • Full SMD Technology
  • Soft Start
  • No Minimum Load Required
  • Efficiency up to 89 %
  • Adjustable Output Voltage
  • -40°C ~ +85°C Operating Temperature Range
  • Remote On/Off Control
  • Over Load Protection
  • Over Voltage Protection
  • 1600 VDC Isolation

Models and Ratings

Model Input VDC Output VDC Output Current Size (1x1")
VN-123R3S15 9~18 Volts 3.3 Volts 4000mA 25.4 x 25.4 x 10.4mm
VN-1205S15 9~18 Volts 5 Volts 3000mA 25.4 x 25.4 x 10.4mm
VN-1212S15 9~18 Volts 12 Volts 1300mA 25.4 x 25.4 x 10.4mm
VN-1215S15 9~18 Volts 15 Volts 1000mA 25.4 x 25.4 x 10.4mm
VN-243R3S15 18~36 Volts 3.3 Volts 4000mA 25.4 x 25.4 x 10.4mm
VN-2405S15 18~36 Volts 5 Volts 3000mA 25.4 x 25.4 x 10.4mm
VN-2412S15 18~36 Volts 12 Volts 1300mA 25.4 x 25.4 x 10.4mm
VN-2415S15 18~36 Volts 15 Volts 1000mA 25.4 x 25.4 x 10.4mm
VN-483R3S15 36~75 Volts 3.3 Volts 4000mA 25.4 x 25.4 x 10.4mm
VN-4805S15 36~75 Volts 5 Volts 3000mA 25.4 x 25.4 x 10.4mm
VN-4812S15 36~75 Volts 12 Volts 1300mA 25.4 x 25.4 x 10.4mm
VN-4815S15 36~75 Volts 15 Volts 1000mA 25.4 x 25.4 x 10.4mm

Dual Output Models

Model Input VDC Output 1 Output 2 Size (1x1")
VN-1205D15 9~18 Volts +5 Volts / +1500mA -5 Volts / -1500mA 25.4 x 25.4 x 10.4mm
VN-1212D15 9~18 Volts +12 Volts / +625mA -12 Volts / -625mA 25.4 x 25.4 x 10.4mm
VN-1215D15 9~18 Volts +15 Volts / +500mA -15 Volts / -500mA 25.4 x 25.4 x 10.4mm
VN-2405D15 18~36 Volts +5 Volts / +1500mA -5 Volts / -1500mA 25.4 x 25.4 x 10.4mm
VN-2412D12 18~36 Volts +12 Volts / +625mA -12 Volts / -625mA 25.4 x 25.4 x 10.4mm
VN-2415D12 18~36 Volts +15 Volts / +500mA -15 Volts / -500mA 25.4 x 25.4 x 10.4mm
VN-4805D15 36~72 Volts +5 Volts / +1500mA -5 Volts / -1500mA 25.4 x 25.4 x 10.4mm
VN-4812D15 36~72 Volts +12 Volts / +625mA -12 Volts / -625mA 25.4 x 25.4 x 10.4mm
VN-4815D15 36~72 Volts +15 Volts / +500mA -15 Volts / -500mA 25.4 x 25.4 x 10.4mm

Related Products

ec5daw-dc-dc-converter ec5daw-dc-dc-converter

EC5DAW Series

Models & Information

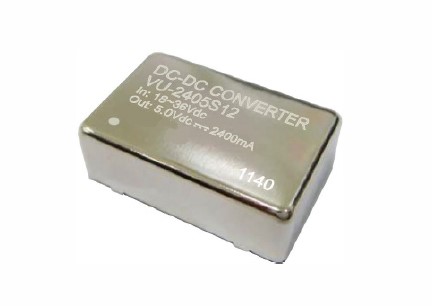

VU-12W-dcdc-converter VU-12W-dcdc-converter

VU-12W Series

Models & Information

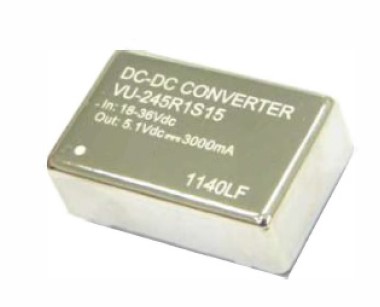

VU-15W-DCDC-CONVERTER VU-15W-DCDC-CONVERTER
