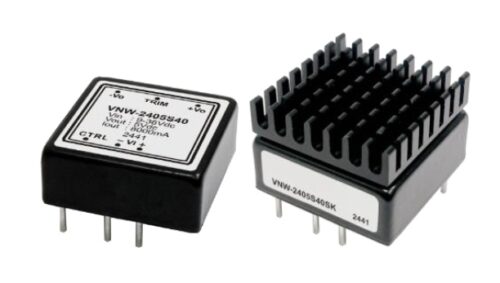

VNW40 SERIES

VNW-40W Series

Home | Products | Encapsulated | VNW-40W Series

VNW-40 Series, 40 Watt Through Hole DC-DC Converter

1×1″ Package

1600 VDC Isolation

4:1 Inputs

Heat-sink option (Suffix ‘SK’)

Single and Dual Output

Request a quote Download Datasheet

Wide 4:1 Input Range
Continuous Short Circuit Protection
Soft Start
Efficiency up to 91 %
Adjustable Output Voltage
Extended -40°C ~ +105°C Operating Temperature Range
Remote On/Off Control
Over Load Protection
Over Voltage Protection
1600 VDC Isolation
Optional Heat-sink available

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (1x1")
VNW-2405S40	9~36 Volts	5 Volts	8000mA	25.4 x 25.4 x 10.4mm
VNW-2412S40	9~36 Volts	12 Volts	3400mA	25.4 x 25.4 x 10.4mm
VNW-2415S40	9~36 Volts	15 Volts	2700mA	25.4 x 25.4 x 10.4mm
VNW-2424S40	9~36 Volts	24 Volts	1700mA	25.4 x 25.4 x 10.4mm

VNW-4805S40	18~75 Volts	5 Volts	8000mA	25.4 x 25.4 x 10.4mm
VNW-4812S40	18~75 Volts	12 Volts	3400mA	25.4 x 25.4 x 10.4mm
VNW-4815S40	18~75 Volts	15 Volts	2700mA	25.4 x 25.4 x 10.4mm
VNW-4824S40	18~75 Volts	24 Volts	1700mA	25.4 x 25.4 x 10.4mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (1x1")
VNW-2412D40	9~36 Volts	+12 Volts / +1700mA	-12 Volts / -1700mA	25.4 x 25.4 x 10.4mm
VNW-2415D40	9~36 Volts	+15 Volts / +1350mA	-15 Volts / -1350mA	25.4 x 25.4 x 10.4mm

VNW-4815D40	18~75 Volts	+12 Volts / +1700mA	-12 Volts / -1700mA	25.4 x 25.4 x 10.4mm
VNW-4815D40	18~75 Volts	+15 Volts / +1350mA	-15 Volts / -1350mA	25.4 x 25.4 x 10.4mm

Related Products

vn-20w-dcdc-converter

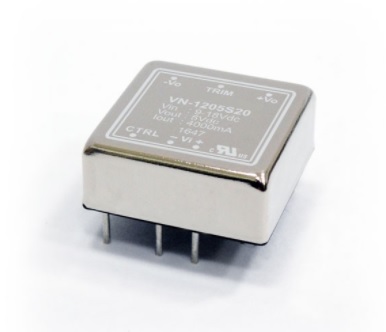

VN-20W Series

Models & Information

vn-30w-dcdc-converter

VN-30W Series

Models & Information

eclb40w-dcdc-converter

ECLB40W-40 Watt

Models & Information

ecb40w18-dc-dc-converter

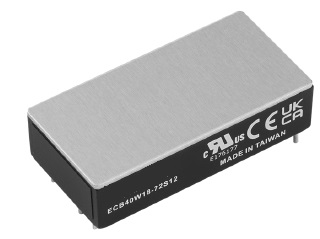

ECB40W18
