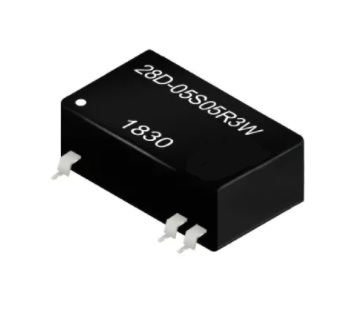

28D-3W Series, 3 Watt Surface Mount DC-DC Converter
16 Pin SMD Package
1500 VDC Isolation
2:1 Input Range
Regulated Single and Dual Output
Features
- 3W Isolated Output
- 16 Pin SMD Package
- Up to 1500 VDC Isolation
- Regulated Output
- Efficiency up to 87 %
- Internal SMD Construction
- No External Component Required
- Operating Temperature:-40℃ TO +85℃
Models and Ratings
| Model | Input VDC | Output VDC | Output Current | Size (16 Pin SMD) |
|---|---|---|---|---|
| 28D-05S03R3W | 4.5~9 Volts | 3.3 Volts | 700mA | 24.1 x 14.35 x 10.25mm |
| 28D-05S05R3W | 4.5~9 Volts | 5 Volts | 600mA | 24.1 x 14.35 x 10.25mm |
| 28D-05S12R3W | 4.5~9 Volts | 12 Volts | 250mA | 24.1 x 14.35 x 10.25mm |
| 28D-05S15R3W | 4.5~9 Volts | 15 Volts | 200mA | 24.1 x 14.35 x 10.25mm |
| 28D-12S03R3W | 9~18 Volts | 3.3 Volts | 700mA | 24.1 x 14.35 x 10.25mm |
| 28D-12S05R3W | 9~18 Volts | 5 Volts | 600mA | 24.1 x 14.35 x 10.25mm |
| 28D-12S12R3W | 9~18 Volts | 12 Volts | 250mA | 24.1 x 14.35 x 10.25mm |
| 28D-12S15R3W | 9~18 Volts | 15 Volts | 200mA | 24.1 x 14.35 x 10.25mm |
| 28D-24S03R3W | 18~36 Volts | 3.3 Volts | 700mA | 24.1 x 14.35 x 10.25mm |
| 28D-24S05R3W | 18~36 Volts | 5 Volts | 600mA | 24.1 x 14.35 x 10.25mm |
| 28D-24S12R3W | 18~36 Volts | 12 Volts | 250mA | 24.1 x 14.35 x 10.25mm |
| 28D-24S15R3W | 18~36 Volts | 15 Volts | 200mA | 24.1 x 14.35 x 10.25mm |
| 28D-48S03R3W | 36~75 Volts | 3.3 Volts | 700mA | 24.1 x 14.35 x 10.25mm |
| 28D-48S05R3W | 36~75 Volts | 5 Volts | 600mA | 24.1 x 14.35 x 10.25mm |
| 28D-48S12R3W | 36~75 Volts | 12 Volts | 250mA | 24.1 x 14.35 x 10.25mm |
| 28D-48S15R3W | 36~75 Volts | 15 Volts | 200mA | 24.1 x 14.35 x 10.25mm |
Dual Output Models
| Model | Input VDC | Output 1 | Output 2 | Size (16 Pin SMD) |
|---|---|---|---|---|
| 28D-05D05R3W | 4.5~9 Volts | +5 Volts / +300A | -5 Volts / -300mA | 24.1 x 14.35 x 10.25mm |
| 28D-05D05R3W | 4.5~9 Volts | +12 Volts / +125mA | -12 Volts / -125mA | 24.1 x 14.35 x 10.25mm |
| 28D-05D05R3W | 4.5~9 Volts | +15 Volts / +100mA | -15 Volts / -100mA | 24.1 x 14.35 x 10.25mm |
| 28D-12D05R3W | 9~18 Volts | +5 Volts / +300A | -5 Volts / -300mA | 24.1 x 14.35 x 10.25mm |
| 28D-12D12R3W | 9~18 Volts | +12 Volts / +125mA | -12 Volts / -125mA | 24.1 x 14.35 x 10.25mm |
| 28D-12D15R3W | 9~18 Volts | +15 Volts / +100mA | -15 Volts / -100mA | 24.1 x 14.35 x 10.25mm |
| 28D-24D05R3W | 18~36 Volts | +5 Volts / +300A | -5 Volts / -300mA | 24.1 x 14.35 x 10.25mm |
| 28D-24D12R3W | 18~36 Volts | +12 Volts / +125mA | -12 Volts / -125mA | 24.1 x 14.35 x 10.25mm |
| 28D-24D15R3W | 18~36 Volts | +15 Volts / +100mA | -15 Volts / -100mA | 24.1 x 14.35 x 10.25mm |
| 28D-48D05R3W | 36~75 Volts | +5 Volts / +300A | -5 Volts / -300mA | 24.1 x 14.35 x 10.25mm |
| 28D-48D12R3W | 36~75 Volts | +12 Volts / +125mA | -12 Volts / -125mA | 24.1 x 14.35 x 10.25mm |
| 28D-48D15R3W | 36~75 Volts | +15 Volts / +100mA | -15 Volts / -100mA | 24.1 x 14.35 x 10.25mm |
