EC3A-E-3W-DCDC-CONVERTER

EC3A-E-3 Watt

Home | Products | Through Hole DC-DC Converters | EC3A-E-3 Watt

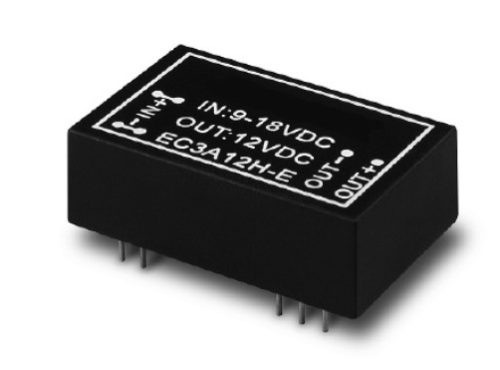

EC3A-E-3W Series, 3 Watt Through Hole DC-DC Converter

24 Pin DIL Package

Up to 3000 VDC High Isolation

Regulated Single and Dual Output

Request a quote Download Datasheet

2"x 1" Input Range
3 Watt Isolated Output
Up to 3000 VDC
Continuous Short Circuit Protection
Efficiency up to 87 %
EMI Complies with EN55032 Class A
Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (24 Pin DIL)
EC3A07x-E	4.5~9 Volts	3.3 Volts	600mA	31.8 x 20.3 x 10.2mm
EC3A01x-E	4.5~9 Volts	5 Volts	600mA	31.8 x 20.3 x 10.2mm
EC3A02x-E	4.5~9 Volts	12 Volts	250mA	31.8 x 20.3 x 10.2mm
EC3A03x-E	4.5~9 Volts	15 Volts	200mA	31.8 x 20.3 x 10.2mm

EC3A17x-E	9~18 Volts	3.3 Volts	600mA	31.8 x 20.3 x 10.2mm
EC3A11x-E	9~18 Volts	5 Volts	600mA	31.8 x 20.3 x 10.2mm
EC3A12x-E	9~18 Volts	12 Volts	250mA	31.8 x 20.3 x 10.2mm
EC3A13x-E	9~18 Volts	15 Volts	200mA	31.8 x 20.3 x 10.2mm

EC3A27x-E	18~36 Volts	3.3 Volts	600mA	31.8 x 20.3 x 10.2mm
EC3A21x-E	18~36 Volts	5 Volts	600mA	31.8 x 20.3 x 10.2mm
EC3A22x-E	18~36 Volts	12 Volts	250mA	31.8 x 20.3 x 10.2mm
EC3A23x-E	18~36 Volts	15 Volts	200mA	31.8 x 20.3 x 10.2mm

EC3A37x-E	36~72 Volts	3.3 Volts	600mA	31.8 x 20.3 x 10.2mm
EC3A31x-E	36~72 Volts	5 Volts	600mA	31.8 x 20.3 x 10.2mm
EC3A32x-E	36~72 Volts	12 Volts	250mA	31.8 x 20.3 x 10.2mm
EC3A33x-E	36~72 Volts	15 Volts	200mA	31.8 x 20.3 x 10.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (24 Pin DIL)
EC3A32x-E	4.5~9 Volts	+5 Volts / +300mA	-5 Volts / -300mA	31.75 x 20.32 x 10.16mm
EC3A32x-E	4.5~9 Volts	+12 Volts / +125mA	-12 Volts / -125mA	31.75 x 20.32 x 10.16mm
EC3A32x-E	4.5~9 Volts	+15 Volts / +100mA	-15 Volts / -100mA	31.75 x 20.32 x 10.16mm

EC3A32x-E	9~18 Volts	+5 Volts / +300mA	-5 Volts / -300mA	31.75 x 20.32 x 10.16mm
EC3A32x-E	9~18 Volts	+12 Volts / +125mA	-12 Volts / -125mA	31.75 x 20.32 x 10.16mm
EC3A32x-E	9~18 Volts	+15 Volts / +100mA	-15 Volts / -100mA	31.75 x 20.32 x 10.16mm

EC3A32x-E	18~36 Volts	+5 Volts / +300mA	-5 Volts / -300mA	31.75 x 20.32 x 10.16mm
EC3A32x-E	18~36 Volts	+12 Volts / +125mA	-12 Volts / -125mA	31.75 x 20.32 x 10.16mm
EC3A32x-E	18~36 Volts	+15 Volts / +100mA	-15 Volts / -100mA	31.75 x 20.32 x 10.16mm

EC3A32x-E	36~72 Volts	+5 Volts / +300mA	-5 Volts / -300mA	31.75 x 20.32 x 10.16mm
EC3A32x-E	36~72 Volts	+12 Volts / +125mA	-12 Volts / -125mA	31.75 x 20.32 x 10.16mm
EC3A32x-E	36~72 Volts	+15 Volts / +100mA	-15 Volts / -100mA	31.75 x 20.32 x 10.16mm

Related Products

fd-5w-dcdc-converter

FD-5 Watt

Models & Information

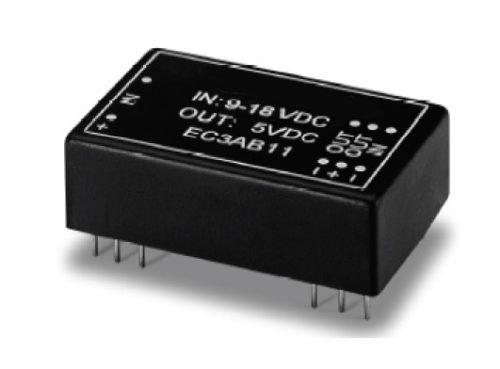

EC3AB-DCDC-CONVERTER

EC3AB-3 Watt

Models & Information

ec3aw-dcdc-converter

EC3AW-3 Watt

Models & Information

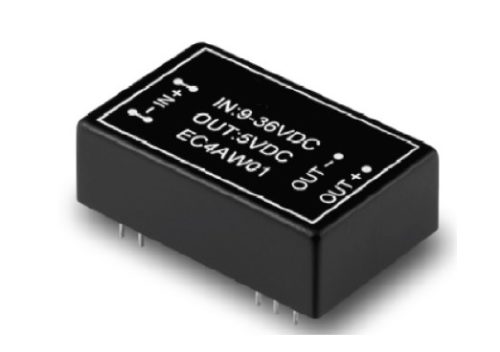

ec4saw-dcdc-converter
