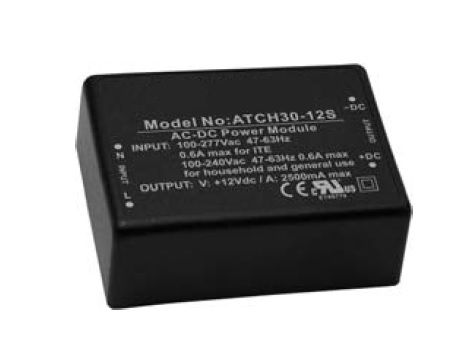

ATCH30 Series

ATCH30 Series, 30 Watt Single Output, Encapsulated Power Supplies

Features

  • Universal Input Range 90-305VAC, 47-440Hz
  • Ultra Compact Size: 2.53 x 1.78 x 0.85 inches
  • I/O Isolation 4000VAC
  • Operating Ambient Temperature Range -40°C to +85°C
  • No Load Power Consumption < 0.1W
  • High Efficiency up to 88%
  • Operating attitude 5000m (UL / IEC / EN 62368-1)
  • EMC Compliant without External Components
  • Safety Approval to UL / IEC / EN 62368-1, IEC / EN 60950-1, IEC / EN 60335-1, IEC / EN 61558-2-16
  • 3-Year Product Warranty

Models and Ratings

ModelInput VACOutput VDCOutput CurrentSize
ATCH30-5.1S90~3055.1 Volts4.6 Amps64.3 x 45.1 x 21.7mm
ATCH30-12S90~30512 Volts2.5 Amps64.3 x 45.1 x 21.7mm
ATCH30-15S90~30515 Volts2 Amp64.3 x 45.1 x 21.7mm
ATCH30-24S90~30524 Volts1.25 Amps64.3 x 45.1 x 21.7mm
