CFM21 Series

CFM21 Series, 20 Watt Medically Approved Single Output Power Supplies

Available in Open Frame PCB & Chassis Mounting or Encapsulated PCB Mounting

Request a quote Download Datasheet

Features

  • Universal Input Range 90~264Vac
  • Miniature Size Low Profile 0.8”
  • Industry-Standard Pin Out
  • Efficiency to 85%
  • Option for On-Board, Connecter, Screw Terminal or Encapsulated type
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Over Voltage Protection
  • Leakage Current < 0.1mA
  • No Load Input Power < 0.3W
  • IEC/EN/UL 60601-1 Medical Safety Approved

Models and Ratings

ModelInput VACOutput VDCOutput Current
CFM21S03390~2643.3 Volts4 Amps
CFM21S05090~2645 Volts4 Amps
CFM21S09090~2649 Volts2.3 Amps
CFM21S12090~26412 Volts1.7 Amps
CFM21S15090~26415 Volts1.4 Amps
CFM21S24090~26424 Volts0.9 Amps

Notes

* Open Frame PCB Mounting is Standard
* Add suffix -T for Open Frame, Chassis Mounting, Plug in connectors
* Add suffix -E for Encapsulated, PCB Mounting
* Add Suffix -S for Open Frame, Chassis Mounting & screw terminal connections

Related Products

CFM12S-power-supply CFM12S-power-supply

CFM12S Series

Models & Information
CFM21M-medical-power-supply CFM21M-medical-power-supply

CFM21M Series

Models & Information

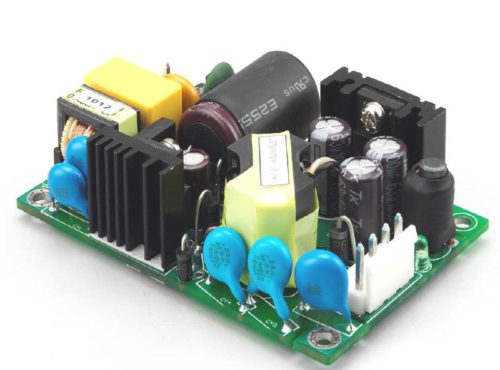

cfm40m-medical cfm40m-medical
