CFM25S-E Series

Home | Products | Encapsulated | CFM25S-E Series

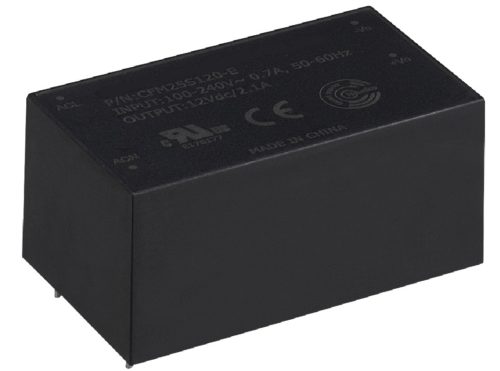

CFM25S-E Series, 25 Watt Single Output, Encapsulated Power Supplies

Request a quote Download Datasheet

Universal Input 90~264VAC
High Efficiency up to 87%
2”x 1.1” Open Frame Compact Size
Class II
No Load Input Power < 0.1W
Approval IEC/EN/UL 62368-1
Approval IEC/EN 60335-1
Approval EN 55032 Class B and CISPR/FCC Class B
Operating Altitude 5000m
Continuous Short Circuit Protection
Over Voltage Protection
Peak Load (2 Times of Rated Current)

Models and Ratings

Model	Input VAC	Output VDC	Output Current	Size
CFM25S050-E	90~264	5 Volts	4 Amps	53.1 x 30.3 x 24.8mm
CFM25S120-E	90~264	12 Volts	2.1 Amps	53.1 x 30.3 x 24.8mm
CFM25S150-E	90~264	15 Volts	1.67 Amps	53.1 x 30.3 x 24.8mm
CFM25S240-E	90~264	24 Volts	1.05 Amps	53.1 x 30.3 x 24.8mm
CFM25S360-E	90~264	36 Volts	0.7 Amps	53.1 x 30.3 x 24.8mm
CFM25S480-E	90~264	48 Volts	0.52 Amps	53.1 x 30.3 x 24.8mm

Related Products

tuhs15-power-supply

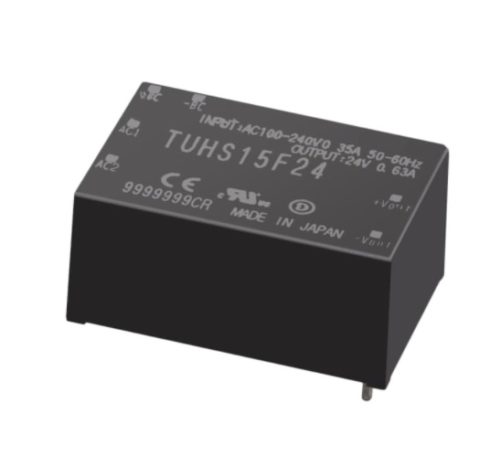

TUHS15F Series

Models & Information

akc-power-supply

AKC Series

Models & Information

cfm12se-power-supply

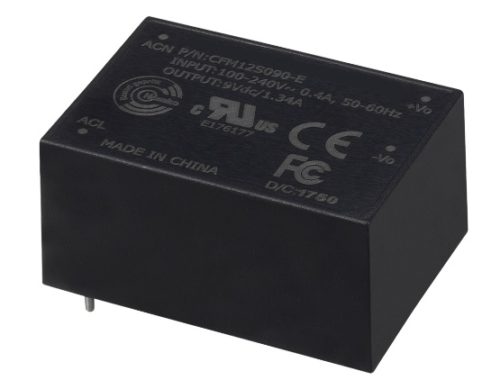

CFM12S-E Series
