CFM400S Series

Home | Products | Single Output Fully Enclosed | CFM400S Series

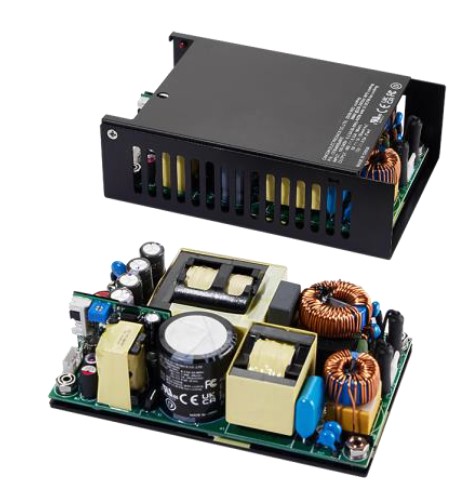

CFM400S Series, 400 Watt, Conduction Cooled Power Supply – Ultra Compact Size

Request a quote Download Datasheet

Universal Input Range 80 ~ 264 VAC
High Efficiency up to 94%
3”x 5” Compact Size
No Load Power Consumption<0.5W(PS-Off)
Approval IEC/EN/UL 62368-1
Approval EN 55032, 47 CFR FCC Part 15
Active PFC Meets EN 61000-3-2
Meets IEC/EN 60335-1
High Power Density up to 17.3W/Inch3
370W Natural, 400W ConductionConvection
Over Temperature Protection
PS On/Off Remote Control
Power Good & Power Fail Signal
+5V Stand-by, 12V Fan Output
Low Inrush Current

Models and Ratings

Model	Input VAC	Output VDC	Output Current	Size
CFM400S120	80~264 VAC	12 Volts	33.33 Amps	127 x 76.2 x 39.1mm
CFM400S180	80~264 VAC	18 Volts	22.22 Amps	127 x 76.2 x 39.1mm
CFM400S240	80~264 VAC	24 Volts	16.67 Amps	127 x 76.2 x 39.1mm
CFM400S360	80~264 VAC	36 Volts	11.11 Amps	127 x 76.2 x 39.1mm
CFM400S480	80~264 VAC	48 Volts	8.33 Amps	127 x 76.2 x 39.1mm
CFM400S540	80~264 VAC	54 Volts	7.40 Amps	127 x 76.2 x 39.1mm
