Fully Cased

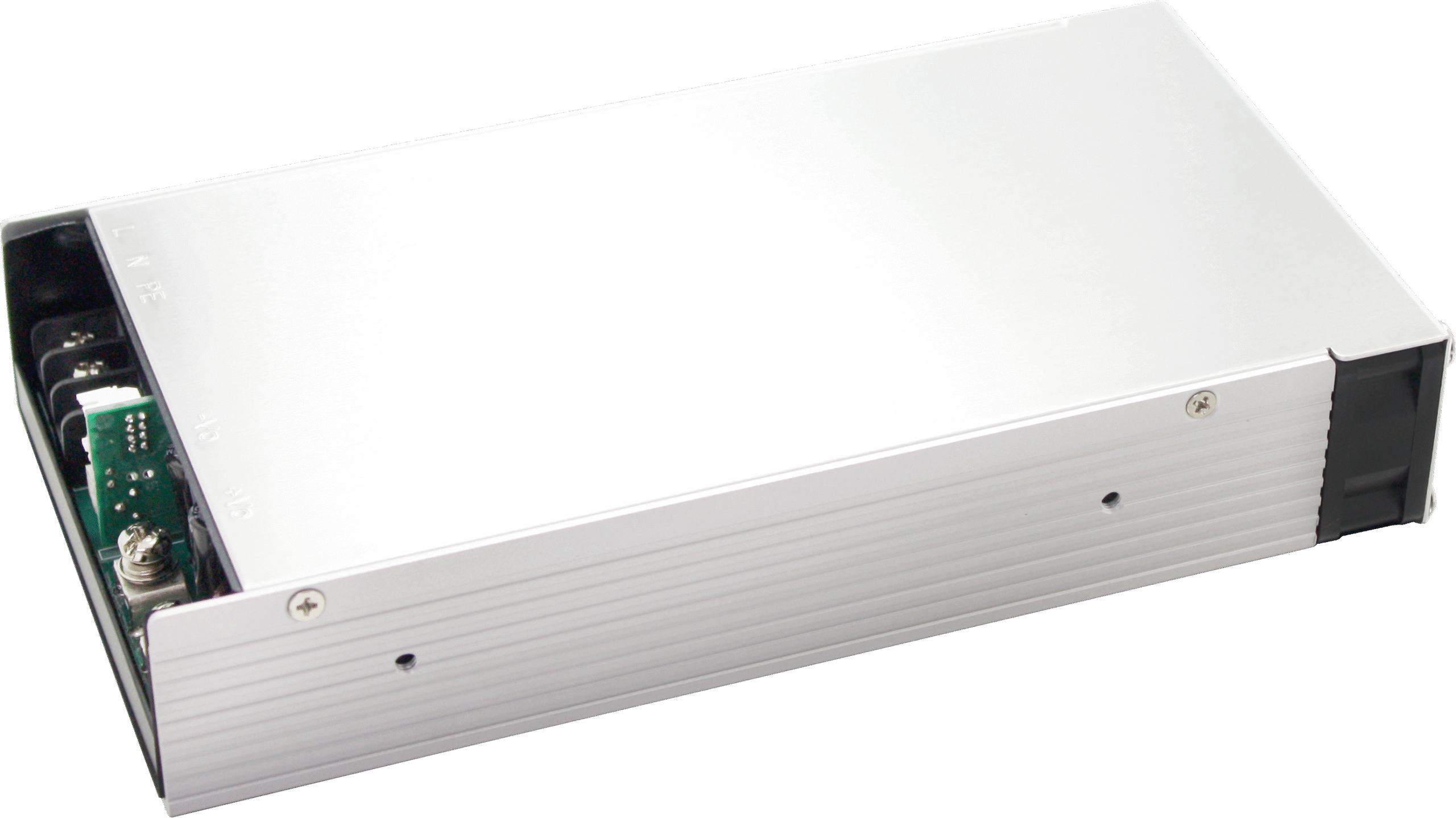

Single Output Fully Enclosed
- High Reliability - Up To 5 Year Warranty
- Screw Terminal Connections
- Convection Cooled Or Integral Fan
- Full Safety Approvals & EMC
- Full Load 100% Burn In
- Parallel & Redundancy Options Available
- Worldwide AC Inputs
- Low Cost Options From Stock
Product Filter Options
Product
Model
Output Power
Input VAC
Output VDC
Size
Datasheet
35 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 36 Volts 48 Volts
99 x 82 x 30mm
50 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 15 Volts 36 Volts 48 Volts
91.4 x 64 x 34.5mm
50 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 36 Volts 48 Volts
99 x 82 x 30mm
70 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 15 Volts 36 Volts 48 Volts
91.4 x 64 x 34.5mm
75 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 36 Volts 48 Volts
99 x 97 x 30mm
100 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 36 Volts 48 Volts
129 x 97 x 30mm
130 Watts
90~264 VAC
12 Volts 24 Volts 48 Volts
80 x 59.7 x 43.2mm
150 Watts
85~132 / 170~264 Switch Selectable
12 Volts 24 Volts 36 Volts 48 Volts
159 x 97 x 30mm
200 Watts
90~264 VAC
12 Volts 24 Volts 15 Volts 28 Volts 30 Volts 36 Volts 48 Volts 54 Volts
78.6 x 57.9 x 25.4mm
240 Watts
90~264 VAC
12 Volts 24 Volts 48 Volts
104 x 62.5 x 39.2mm
240 Watts
90~264 VAC
12 Volts 24 Volts 32 Volts 48 Volts
150 x 106 x 35mm
300 Watts
90~264 VAC
12 Volts 24 Volts 15 Volts 28 Volts 30 Volts 48 Volts 54 Volts
104 x 57.9 x 25.4mm
300 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 15 Volts 32 Volts 48 Volts
152 x 89 x 41mm
300 Watts
90~264 VAC
12 Volts 24 Volts 36 Volts 48 Volts
136 x 87 x 40.4mm
400 Watts
90~264 VAC
12 Volts 24 Volts 18 Volts 36 Volts 48 Volts 54 Volts
127 x 76.2 x 39.1mm
420 Watts
90~264 VAC
12 Volts 24 Volts 15 Volts 28 Volts 30 Volts 36 Volts 48 Volts 54 Volts
129.4 x 83.5 x 25.4mm
500 Watts
90~264 VAC
12 Volts 24 Volts 18 Volts 36 Volts 48 Volts
127 x 76.2 x 39.1mm
500 Watts
90~264 VAC
12 Volts 24 Volts 15 Volts 30 Volts 48 Volts 56 Volts
165.3 x 85.2 x 41mm
500 Watts
90~264 VAC
12 Volts 24 Volts 48 Volts
129.7 x 82.55 x 62.3mm
550 Watts
90~264 VAC
12 Volts 24 Volts 15 Volts 28 Volts 30 Volts 36 Volts 48 Volts 54 Volts
129.4 x 83.5 x 25.4mm
600 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 15 Volts 32 Volts 48 Volts
152 x 89 x 41mm
600 Watts
90~264 VAC
3.3 Volts 5 Volts 9 Volts 12 Volts 24 Volts 15 Volts 48 Volts
215 x 120 x 61mm
700 Watts
90~264 VAC
12 Volts 24 Volts 15 Volts 28 Volts 48 Volts
170.2 x 93 x 41mm
1000 Watts
90~264 VAC
12 Volts 24 Volts 48 Volts
194.5 x 102 x 41mm
1000 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 15 Volts 32 Volts 48 Volts
178 x 102 x 41mm
1000 Watts
90~264 VAC
12 Volts 24 Volts 15 Volts 48 Volts
295 x 127 x 41mm
1500 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 15 Volts 32 Volts 48 Volts
203 x 140 x 41mm
1500 Watts
90~264 VAC
5 Volts 12 Volts 24 Volts 15 Volts 28 Volts 36 Volts 48 Volts
330 x 126.5 x 82mm
2500 Watts
170~264 VAC
36 Volts 48 Volts
340 x 102 x 41mm
3000 Watts
180 ~ 370 VAC
120 Volts 250 Volts 400 Volts
278 x 177.8 x 63.5mm
3000 Watts
170~264 VAC
48 Volts
340 x 102 x 41mm
3500 Watts
180 ~ 528 VAC (3 Phase)
48 Volts 65 Volts
468 x 110 x 41mm
3500 Watts
180 ~ 528 VAC (3 Phase)
48 Volts 65 Volts
420 x 110 x 65mm
7000 Watts
300~480 Volts (3 Phase)
48 Volts 144 Volts
475 x 388 x 43mm
