CSP-3000 Series

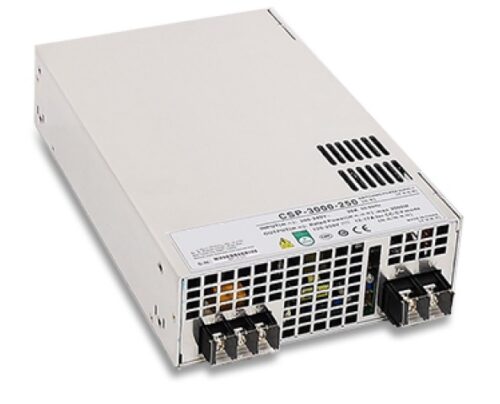

CSP-3000 Series, 3000 Watt, Fully Enclosed, Single Output Power Supply

Output Voltage & Current Programmable

Request a quote Download Datasheet

Built-in Active PFC
High Efficiency Up To 93%
Forced Air Cooling By Built-in DC Fans
Output Voltage / Output Current Programmable
Active Current Sharing Up To 9000 Watts (2+1)
Built-in Remote ON/OFF Control / Auxiliary Power & Power OK Signal
Short Circuit, Overload, Over Voltage, Over Temperature & Fan Failure Protection
Conformal Coating
5 Year Warranty

Model	Input VAC	Output VDC	Output Current	Size
CSP-3000-120	180~264 / 254~370	120 Volts	25 Amps	278 x 177.8 x 63.5mm
CSP-3000-250	180~264 / 254~370	250 Volts	12 Amps	278 x 177.8 x 63.5mm
CSP-3000-400	180~264 / 254~370	400 Volts	7.5 Amps	278 x 177.8 x 63.5mm
