EC2SAW8-2 Watt

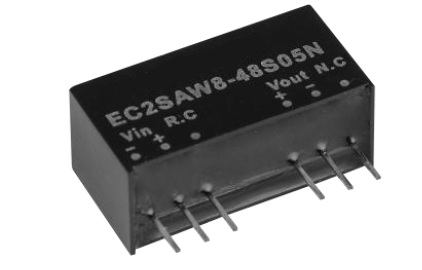

EC2SAW8 Series, 2 Watt Through Hole DC-DC Converter

8:1 Input Range SIP-8 Regulated DC-DC Converter

3000 VDC Isolation

Single and Dual Output

Request a quote Download Datasheet

Model	Input VDC	Output VDC	Output Current	Size
EC2SAW8-48S33N	9~75 Volts	3.3 Volts	500mA	21.8 x 11.1 x 9.2mm
EC2SAW8-48S05N	9~75 Volts	5 Volts	400mA	21.8 x 11.1 x 9.2mm
EC2SAW8-48S12N	9~75 Volts	12 Volts	167mA	21.8 x 11.1 x 9.2mm
EC2SAW8-48S15N	9~75 Volts	15 Volts	134mA	21.8 x 11.1 x 9.2mm

Model	Input VDC	Output 1	Output 2	Size
EC2SAW8-48D05N	9~75 Volts	+5 Volts / +200mA	-5 Volts / -200mA	21.8 x 11.1 x 9.2mm
EC2SAW8-48D12N	9~75 Volts	+12 Volts / +83mA	-12 Volts / -83mA	21.8 x 11.1 x 9.2mm
EC2SAW8-48D15N	9~75 Volts	+15 Volts / +67mA	-15 Volts / -67mA	21.8 x 11.1 x 9.2mm
