EC3SBW-DCDC-CONVERTER

EC3SBW-15 Watt

Home | Products | Encapsulated | EC3SBW-15 Watt

EC3SBW Series, 15 Watt DC-DC Converter

1″x 1″ Package

1500 VDC Isolation

4:1 Inputs

Regulated Single and Dual Output

Heat-sink Option Available – add Suffix ‘K-C087’

Request a quote Download Datasheet

15W Isolated Output
1”×1”×0.4” Shielded Metal Case
Efficiency to 88%
4:1 Input Range
Regulated Outputs
Input Under Voltage Protection
Remote On/Off
Continuous Short Circuit Protection
Without Tantalum Capacitors Inside
Fixed Switching Frequency
Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (1"x 1")
EC3SBW-24S33	9~36 Volts	3.3 Volts	4000mA	25.4 x 25.4 x 10.2mm
EC3SBW-24S05	9~36 Volts	5 Volts	3000mA	25.4 x 25.4 x 10.2mm
EC3SBW-24S12	9~36 Volts	12 Volts	1250mA	25.4 x 25.4 x 10.2mm
EC3SBW-24S15	9~36 Volts	15 Volts	1000mA	25.4 x 25.4 x 10.2mm

EC3SBW-48S33	18~75 Volts	3.3 Volts	4000mA	25.4 x 25.4 x 10.2mm
EC3SBW-48S05	18~75 Volts	5 Volts	3000mA	25.4 x 25.4 x 10.2mm
EC3SBW-48S12	18~75 Volts	12 Volts	1250mA	25.4 x 25.4 x 10.2mm
EC3SBW-48S15	18~75 Volts	15 Volts	1000mA	25.4 x 25.4 x 10.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (1"x 1")
EC3SBW-24D05	9~36 Volts	+5 Volts / +1500mA	-5 Volts / -1500mA	25.4 x 25.4 x 10.2mm
EC3SBW-24D12	9~36 Volts	+12 Volts / +625mA	-12 Volts / -625mA	25.4 x 25.4 x 10.2mm
EC3SBW-24D15	9~36 Volts	+15 Volts / +500mA	-15 Volts / -500mA	25.4 x 25.4 x 10.2mm

EC3SBW-48D05	18~75 Volts	+5 Volts / +1500mA	-5 Volts / -1500mA	25.4 x 25.4 x 10.2mm
EC3SBW-48D12	18~75 Volts	+12 Volts / +625mA	-12 Volts / -625mA	25.4 x 25.4 x 10.2mm
EC3SBW-48D15	18~75 Volts	+15 Volts / +500mA	-15 Volts / -500mA	25.4 x 25.4 x 10.2mm

Related Products

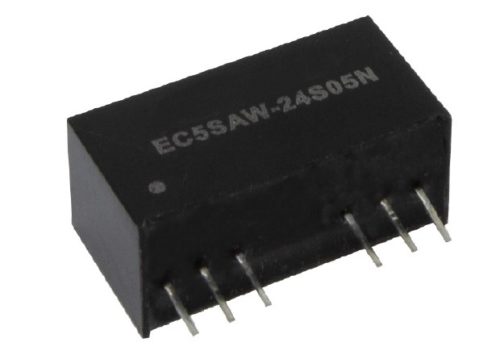

EC5SAW-DCDC-CONVERTER

EC5SAW-10 Watt

Models & Information

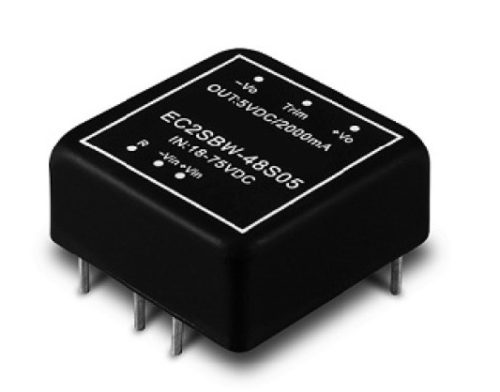

ec2sbw-dcdc-converter

EC2SBW-10 Watt

Models & Information

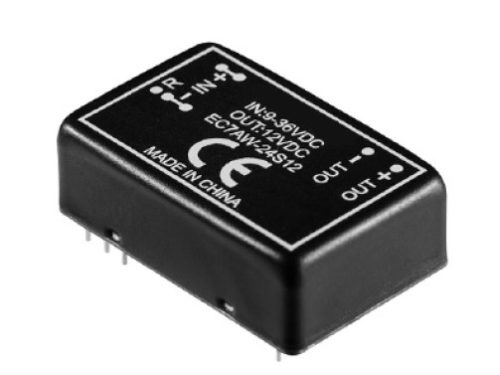

ec7aw-dcdc-converter
