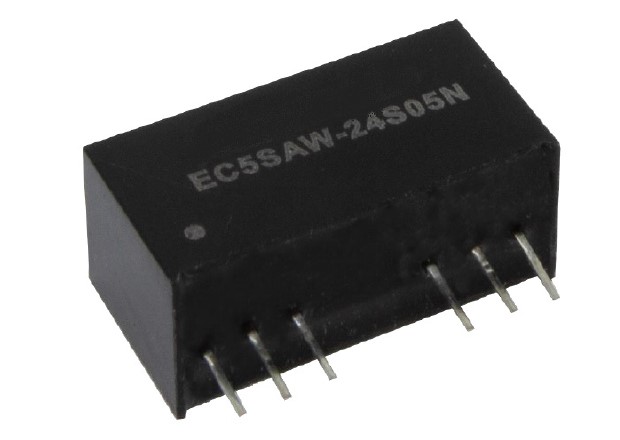

EC5SAW Series, 10 Watt Through Hole DC-DC Converter

8 Pin SIL Package

3000 VDC High Isolation

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

10W Isolated Output
Compact SIP-8 Package
Wide 4:1 Input Range
Remote On/Off Control
Continuous Short Circuit Protection
Efficiency up to 89.5 %
Low No Load Power Consumption

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (8 Pin SIL)
EC5SAW-24S33N	9~36 Volts	3.3 Volts	2000mA	22 x 12 x 9.5mm
EC5SAW-24S05N	9~36 Volts	5 Volts	2000mA	22 x 12 x 9.5mm
EC5SAW-24S12N	9~36 Volts	12 Volts	833mA	22 x 12 x 9.5mm
EC5SAW-24S15N	9~36 Volts	15 Volts	666mA	22 x 12 x 9.5mm

EC5SAW-48S33N	18~75 Volts	3.3 Volts	2000mA	22 x 12 x 9.5mm
EC5SAW-48S05N	18~75 Volts	5 Volts	2000mA	22 x 12 x 9.5mm
EC5SAW-48S12N	18~75 Volts	12 Volts	833mA	22 x 12 x 9.5mm
EC5SAW-48S15N	18~75 Volts	15 Volts	666mA	22 x 12 x 9.5mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (8 Pin SIL)
EC5SAW-24D05N	9~36 Volts	+5 Volts / +1000mA	-5 Volts / -1000mA	22 x 12 x 9.5mm
EC5SAW-24D12N	9~36 Volts	+12 Volts / +417mA	-12 Volts / -417mA	22 x 12 x 9.5mm
EC5SAW-24D15N	9~36 Volts	+15 Volts / +333mA	-15 Volts / -333mA	22 x 12 x 9.5mm

EC5SAW-48D05N	18~75 Volts	+5 Volts / +1000mA	-5 Volts / -1000mA	22 x 12 x 9.5mm
EC5SAW-48D12N	18~75 Volts	+12 Volts / +417mA	-12 Volts / -417mA	22 x 12 x 9.5mm
EC5SAW-48D15N	18~75 Volts	+15 Volts / +333mA	-15 Volts / -333mA	22 x 12 x 9.5mm

Related Products

md-6w-dcdc-converter

MD-6 Watt

Models & Information

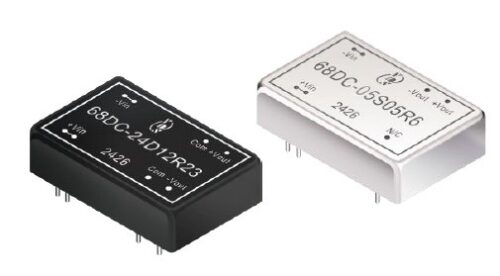

68DC 6 watt DC-DC Converter
