EC4AW8 EC4AW8

EC4AW8-6 Watt

EC4AW8 Series, 6 Watt Through Hole DC-DC Converter

8:1 Input Range

Regulated DC-DC Converter

3000 VDC Isolation

Single and Dual Output

Request a quote Download Datasheet

Features

  • Efficiency up to 87%
  • Fixed Switching Frequency
  • Positive Remote On/Off
  • Fully Protected (OVP/OCP/UVLO)
  • 3000Vdc I/O Isolation
  • Operating Temperature -40 to +105℃
  • 1.25”x0.8”x0.4” Size Meet Industrial Standard
  • Safety Meets IEC/EN/UL 62368-1
  • Meets EN 55032 Class A without External Filter
  • 5000m Operating Altitude

Models and Ratings

ModelInput VDCOutput VDCOutput CurrentSize
EC4AW8-48S339~75 Volts3.3 Volts1200mA31.8 x 20.3 x 10.2mm
EC4AW8-48S059~75 Volts5 Volts1000mA31.8 x 20.3 x 10.2mm
EC4AW8-48S129~75 Volts12 Volts500mA31.8 x 20.3 x 10.2mm
EC4AW8-48S159~75 Volts15 Volts400mA31.8 x 20.3 x 10.2mm

Dual Output Models

ModelInput VDCOutput 1Output 2Size
EC4AW8-48D059~75 Volts+5 Volts / +500mA-5 Volts / -500mA31.8 x 20.3 x 10.2mm
EC4AW8-48D129~75 Volts+12 Volts / +250mA-12 Volts / -250mA31.8 x 20.3 x 10.2mm
EC4AW8-48D159~75 Volts+15 Volts / +200mA-15 Volts / -200mA31.8 x 20.3 x 10.2mm

Related Products

ec4sawh-dc-dc-converter ec4sawh-dc-dc-converter

EC4SAW-H-6 Watt

Models & Information
vb-6w-dcdc-converter vb-6w-dcdc-converter

VB-6 Watt

Models & Information
mk-6w-dcdc-converter mk-6w-dcdc-converter

MK-6 Watt

Models & Information
ec4saw-dcdc-converter ec4saw-dcdc-converter

EC4AW-3.3~6 Watt

Models & Information

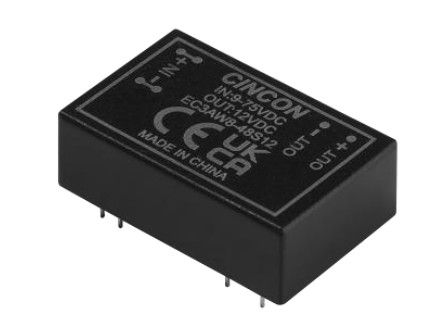

EC3AW8 EC3AW8
