EC4DAW Series, 6 Watt Through Hole DC-DC Converter

16 Pin DIL Package

3000 VDC Isolation

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

6W Isolated Output
DIP-16 Package
4:1 Input Range
Continuous Short Circuit Protection
Safety Meets IEC/EN/UL 62368-1
Negative Remote On/Off
Shock & Vibration MIL-STD-810F Compliant

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (16 Pin DIL)
EC4DAW-24S33N	9~36 Volts	3.3 Volts	1500mA	24.2 x 13.7 x 10mm
EC4DAW-24S05N	9~36 Volts	5 Volts	1200mA	24.2 x 13.7 x 10mm
EC4DAW-24S12N	9~36 Volts	12 Volts	500mA	24.2 x 13.7 x 10mm
EC4DAW-24S15N	9~36 Volts	15 Volts	400mA	24.2 x 13.7 x 10mm

EC4DAW-48S33N	18~74 Volts	3.3 Volts	1200mA	24.2 x 13.7 x 10mm
EC4DAW-48S053N	18~74 Volts	5 Volts	1200mA	24.2 x 13.7 x 10mm
EC4DAW-48S12N	18~74 Volts	12 Volts	500mA	24.2 x 13.7 x 10mm
EC4DAW-48S15N	18~74 Volts	15 Volts	400mA	24.2 x 13.7 x 10mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (16 Pin DIL)
EC4DAW-24D12N	9~36 Volts	+12 Volts / +250mA	-12 Volts / -250mA	24.2 x 13.7 x 10mm
EC4DAW-24D15N	9~36 Volts	+15 Volts / +200mA	-15 Volts / -200mA	24.2 x 13.7 x 10mm

EC4DAW-48D15N	18~74 Volts	+12 Volts / +250mA	-12 Volts / -250mA	24.2 x 13.7 x 10mm
EC4DAW-48D15N	18~74 Volts	+15 Volts / +200mA	-15 Volts / -200mA	24.2 x 13.7 x 10mm

Related Products

ec3aw-dcdc-converter

EC3AW-3 Watt

Models & Information

ec4saw-dcdc-converter

EC4AW-3.3~6 Watt

Models & Information

ec4ab-dcdc-converter

EC4AB-6 Watt

Models & Information

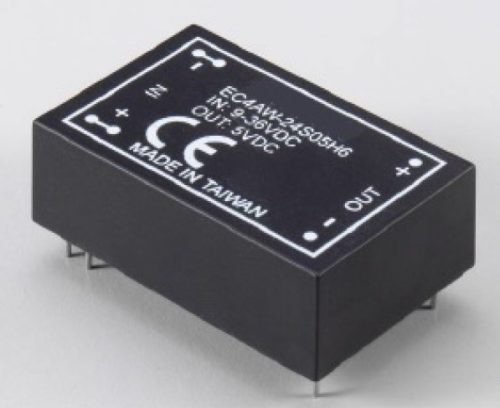

ec4aw-h6-dcdc-converter
