EC4SAW8 DC-DC Converter EC4SAW8 DC-DC Converter

EC4SAW8-6 Watt

EC4SAW8 Series, 6 Watt Through Hole DC-DC Converter

8:1 Input Range SIP-8 Regulated DC-DC Converter

3000 VDC Isolation

Single and Dual Output

Request a quote Download Datasheet

Features

  • 8:1 Input Range SIP-8 Regulated DC-DC Converter
  • Efficiency up to 88%
  • Fixed Switching Frequency
  • Negative Remote On/Off
  • Fully Protected (OCP/UVLO)
  • Low No Load Power Consumption
  • 3000Vdc I/O Isolation
  • Safety Meets IEC/EN/UL 62368-1
  • 5000m Operating Altitude

Models and Ratings

ModelInput VDCOutput VDCOutput CurrentSize
EC4SAW8-48S33N9~75 Volts3.3 Volts1500mA21.8 x 11.1 x 9.2mm
EC4SAW8-48S05N9~75 Volts5 Volts1200mA21.8 x 11.1 x 9.2mm
EC4SAW8-48S12N9~75 Volts12 Volts500mA21.8 x 11.1 x 9.2mm
EC4SAW8-48S15N9~75 Volts15 Volts400mA21.8 x 11.1 x 9.2mm

Dual Output Models

ModelInput VDCOutput 1Output 2Size
EC4SAW8-48D05N9~75 Volts+5 Volts / +600mA-5 Volts / -600mA21.8 x 11.1 x 9.2mm
EC4SAW8-48D12N9~75 Volts+12 Volts / +250mA-12 Volts / -250mA21.8 x 11.1 x 9.2mm
EC4SAW8-48D15N9~75 Volts+15 Volts / +200mA-15 Volts / -200mA21.8 x 11.1 x 9.2mm

Related Products

ec4sawh-dc-dc-converter ec4sawh-dc-dc-converter

EC4SAW-H-6 Watt

Models & Information
vb-6w-dcdc-converter vb-6w-dcdc-converter

VB-6 Watt

Models & Information
mk-6w-dcdc-converter mk-6w-dcdc-converter

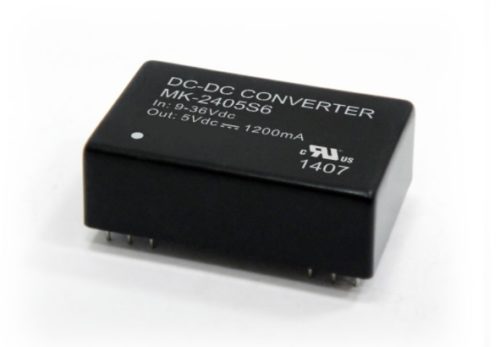

MK-6 Watt
