LFM300M Series

LFM300M Series, 300 Watt, Medically Approved, Single Output Power Supply – Ultra Compact Size

Conduction Cooled

Request a quote Download Datasheet

Features

  • Universal Input Range 85 ~ 264 VAC
  • High Efficiency up to 94%
  • 25.4mm Low Profile Package
  • No Load Input Power Consumption<0.3W
  • Approval Safety IEC/EN/UL 60601-1 2 MOPP
  • Approval Safety IEC/EN/UL 62368-1
  • Meets IEC/EN 60335-1
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • High Power Density 32.1W/Inches3
  • Active PFC Function
  • Over Voltage Category OVC II & OVC III Models

Models and Ratings

Model Input VAC Output VDC Output Current Size
LFM300M120 85~264 VAC 12 Volts 25 Amps 104 x 57.9 x 25.4mm
LFM300M150 85~264 VAC 15 Volts 20 Amps 104 x 57.9 x 25.4mm
LFM300M240 85~264 VAC 24 Volts 12.5 Amps 104 x 57.9 x 25.4mm
LFM300M280 85~264 VAC 28 Volts 10.7 Amps 104 x 57.9 x 25.4mm
LFM300M300 85~264 VAC 30 Volts 10 Amps 104 x 57.9 x 25.4mm
LFM300M480 85~264 VAC 48 Volts 6.25 Amps 104 x 57.9 x 25.4mm
LFM300M540 85~264 VAC 54 Volts 5.56 Amps 104 x 57.9 x 25.4mm

Notes

Add Suffix :
B：With Baseplate
C：With Cover

Related Products

ARF240E-power-supply ARF240E-power-supply

ARF240E Series

Models & Information
cfm300m medical power supply cfm300m medical power supply

CFM300M Series

Models & Information
gha300-power-supply gha300-power-supply

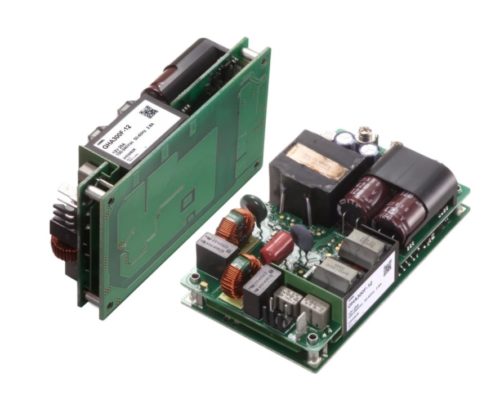

GHA300 Series
