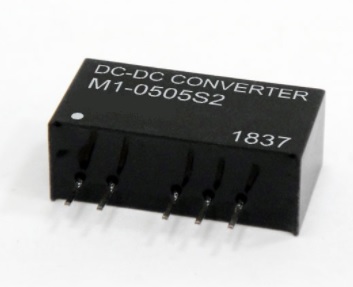

M1 Series 2 Watt Semi-regulated Through Hole DC-DC Converter

7Pin SIL Package

Single and Dual Outputs

Request a quote Download Datasheet

7 Pin SIL Package
Semi-regulated output
Efficiency up to 89%
Up to 3000 VDC Isolation (suffix 'H')
Low Ripple and Noise
-40 ~ 85°C Operation Temperature Range
Non-Conductive Black Plastic Case

Models and Ratings

Model	Input Voltage	Output VDC	Output Current	Size
M1-0505SS2	5 Volts	5 Volts	400mA	19.5 x 9.5 x 7.2mm
M1-0509SS2	5 Volts	9 Volts	222.2mA	19.5 x 9.5 x 7.2mm
M1-0512SS2	5 Volts	12 Volts	166.6mA	19.5 x 9.5 x 7.2mm
M1-0515SS2	5 Volts	15 Volts	133.3mA	19.5 x 9.5 x 7.2mm

M1-1205SS2	12 Volts	5 Volts	400mA	19.5 x 9.5 x 7.2mm
M1-1209SS2	12 Volts	9 Volts	222.2mA	19.5 x 9.5 x 7.2mm
M1-1212SS2	12 Volts	12 Volts	166.6mA	19.5 x 9.5 x 7.2mm
M1-1215SS2	12 Volts	15 Volts	133.3mA	19.5 x 9.5 x 7.2mm

M1-1505SS2	15 Volts	5 Volts	400mA	19.5 x 9.5 x 7.2mm
M1-1509SS2	15 Volts	9 Volts	222.2mA	19.5 x 9.5 x 7.2mm
M1-1512SS2	15 Volts	12 Volts	166.6mA	19.5 x 9.5 x 7.2mm
M1-1515SS2	15 Volts	15 Volts	133.3mA	19.5 x 9.5 x 7.2mm

M1-2405SS2	24 Volts	5 Volts	400mA	19.5 x 9.5 x 7.2mm
M1-2409SS2	24 Volts	9 Volts	222.2mA	19.5 x 9.5 x 7.2mm
M1-2412SS2	24 Volts	12 Volts	166.6mA	19.5 x 9.5 x 7.2mm
M1-2415SS2	24 Volts	15 Volts	133.3mA	19.5 x 9.5 x 7.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size
M1-0505S2	5 Volts	+5 Volts / +200mA	-5 Volts / -200mA	19.5 x 9.5 x 7.2mm
M1-0509S2	5 Volts	+9 Volts / +111.1mA	-9 Volts / -111.1mA	19.5 x 9.5 x 7.2mm
M1-0512S2	5 Volts	+12 Volts / +83.3mA	-12 Volts / -83.3mA	19.5 x 9.5 x 7.2mm
M1-0515S2	5 Volts	+15 Volts / +66.6mA	-15 Volts / -66.6mA	19.5 x 9.5 x 7.2mm

M1-1205S2	12 Volts	+5 Volts / +200mA	-5 Volts / -200mA	19.5 x 9.5 x 7.2mm
M1-1209S2	12 Volts	+9 Volts / +111.1mA	-9 Volts / -111.1mA	19.5 x 9.5 x 7.2mm
M1-1212S2	12 Volts	+12 Volts / +83.3mA	-12 Volts / -83.3mA	19.5 x 9.5 x 7.2mm
M1-1215S2	12 Volts	+15 Volts / +66.6mA	-15 Volts / -66.6mA	19.5 x 9.5 x 7.2mm

M1-1505S2	15 Volts	+5 Volts / +200mA	-5 Volts / -200mA	19.5 x 9.5 x 7.2mm
M1-1509S2	15 Volts	+9 Volts / +111.1mA	-9 Volts / -111.1mA	19.5 x 9.5 x 7.2mm
M1-1512S2	15 Volts	+12 Volts / +83.3mA	-12 Volts / -83.3mA	19.5 x 9.5 x 7.2mm
M1-1515S2	15 Volts	+15 Volts / +66.6mA	-15 Volts / -66.6mA	19.5 x 9.5 x 7.2mm

M1-2405S2	24 Volts	+5 Volts / +200mA	-5 Volts / -200mA	19.5 x 9.5 x 7.2mm
M1-2409S2	24 Volts	+9 Volts / +111.1mA	-9 Volts / -111.1mA	19.5 x 9.5 x 7.2mm
M1-2412S2	24 Volts	+12 Volts / +83.3mA	-12 Volts / -83.3mA	19.5 x 9.5 x 7.2mm
M1-2415S2	24 Volts	+15 Volts / +66.6mA	-15 Volts / -66.6mA	19.5 x 9.5 x 7.2mm

Notes

* Add suffix 'H' for high 3000KVDC Isolation
