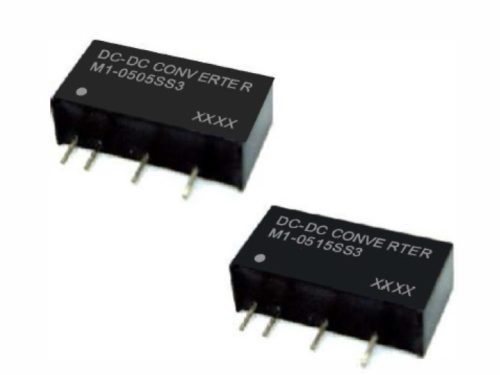

M1 Series 3 Watt Semi-regulated Through Hole DC-DC Converter

7Pin SIL Package

Single and Dual Outputs

Request a quote Download Datasheet

7 Pin SIL Package
Semi-regulated output
Efficiency up to 90%
Up to 3000 VDC Isolation (suffix 'H')
Low Ripple and Noise
-40 ~ 85°C Operation Temperature Range
Non-Conductive Black Plastic Case

Models and Ratings

Model	Input Voltage	Output VDC	Output Current	Size
M1-0505SS3	5 Volts	5 Volts	600mA	19.5 x 9.5 x 7.2mm
M1-0509SS3	5 Volts	9 Volts	333.33mA	19.5 x 9.5 x 7.2mm
M1-0512SS3	5 Volts	12 Volts	250mA	19.5 x 9.5 x 7.2mm
M1-0515SS3	5 Volts	15 Volts	200mA	19.5 x 9.5 x 7.2mm

M1-1205SS3	12 Volts	5 Volts	600mA	19.5 x 9.5 x 7.2mm
M1-1209SS3	12 Volts	9 Volts	333.33mA	19.5 x 9.5 x 7.2mm
M1-1212SS3	12 Volts	12 Volts	250mA	19.5 x 9.5 x 7.2mm
M1-1215SS3	12 Volts	15 Volts	200mA	19.5 x 9.5 x 7.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size
M1-0505S3	5 Volts	+5 Volts / +300mA	-5 Volts / -300mA	19.5 x 9.5 x 7.2mm
M1-0509S3	5 Volts	+9 Volts / +166.67mA	-9 Volts / -166.67mA	19.5 x 9.5 x 7.2mm
M1-0512S3	5 Volts	+12 Volts / +125mA	-12 Volts / -125mA	19.5 x 9.5 x 7.2mm
M1-0515S3	5 Volts	+15 Volts / +100mA	-15 Volts / -100mA	19.5 x 9.5 x 7.2mm

M1-1205S3	12 Volts	+5 Volts / +300mA	-5 Volts / -300mA	19.5 x 9.5 x 7.2mm
M1-1209S3	12 Volts	+9 Volts / +166.67mA	-9 Volts / -166.67mA	19.5 x 9.5 x 7.2mm
M1-1212S3	12 Volts	+12 Volts / +125mA	-12 Volts / -125mA	19.5 x 9.5 x 7.2mm
M1-1215S3	12 Volts	+15 Volts / +100mA	-15 Volts / -100mA	19.5 x 9.5 x 7.2mm

Notes

* Add suffix 'H' for high 3000KVDC Isolation
