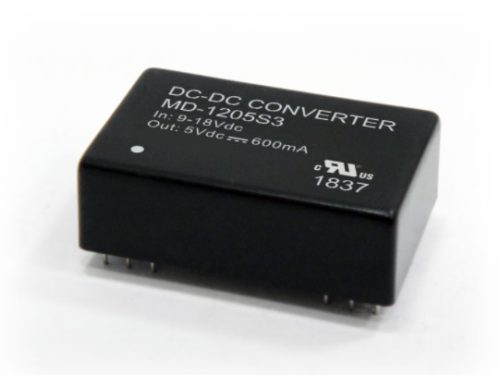

md-3w-dcdc-converter md-3w-dcdc-converter

MD-3 Watt

MD-3W Series, 3 Watt Through Hole DC-DC Converter

24 Pin DIL  Package

Up to 3000 VDC High Isolation

2:1 Input Range

Regulated Single and Dual Output

Request a quote Download Datasheet

Features

  • 2:1 Input Range
  • Full SMD Technology
  • Up to 3000 VDC
  • Continuous Short Circuit Protection
  • Efficiency up to 81 %
  • EMI Complies with EN55032 Class A
  • -40°C ~ +85°C Operating Temperature Range

Models and Ratings

ModelInput VDCOutput VDCOutput CurrentSize (24 Pin DIL)
MD-123R3S39~18 Volts3.3 Volts900mA31.75 x 20.32 x 10.16mm
MD-1205S39~18 Volts5 Volts600mA31.75 x 20.32 x 10.16mm
MD-1212S39~18 Volts12 Volts250mA31.75 x 20.32 x 10.16mm
MD-1215S39~18 Volts15 Volts200mA31.75 x 20.32 x 10.16mm
MD-1224S39~18 Volts24 Volts125mA31.75 x 20.32 x 10.16mm
MD-243R3S318~36 Volts3.3 Volts900mA31.75 x 20.32 x 10.16mm
MD-2405S318~36 Volts5 Volts600mA31.75 x 20.32 x 10.16mm
MD-2412S318~36 Volts12 Volts250mA31.75 x 20.32 x 10.16mm
MD-2415S318~36 Volts15 Volts200mA31.75 x 20.32 x 10.16mm
MD-2424S318~36 Volts24 Volts125mA31.75 x 20.32 x 10.16mm
MD-483R3S336~75 Volts3.3 Volts900mA31.75 x 20.32 x 10.16mm
MD-4805S336~75 Volts5 Volts600mA31.75 x 20.32 x 10.16mm
MD-4812S336~75 Volts12 Volts250mA31.75 x 20.32 x 10.16mm
MD-4815S336~75 Volts15 Volts200mA31.75 x 20.32 x 10.16mm
MD-4824S336~75 Volts24 Volts125mA31.75 x 20.32 x 10.16mm

Dual Output Models

ModelInput VDCOutput 1Output 2Size (24 Pin DIL)
MD-123R3D39~18 Volts+3.3 Volts / +450mA-3.3 Volts / -450mA31.75 x 20.32 x 10.16mm
MD-1205D39~18 Volts+5 Volts / +300mA-5 Volts / -300mA31.75 x 20.32 x 10.16mm
MD-1212D39~18 Volts+12 Volts / +125mA-12 Volts / -125mA31.75 x 20.32 x 10.16mm
MD-1215D39~18 Volts+15 Volts / +100mA-15 Volts / -100mA31.75 x 20.32 x 10.16mm
MD-1224D39~18 Volts+24 Volts / +63mA-24 Volts / -63mA31.75 x 20.32 x 10.16mm
MD-243R3D318~36 Volts+3.3 Volts / +450mA-3.3 Volts / -450mA31.75 x 20.32 x 10.16mm
MD-2405D318~36 Volts+5 Volts / +300mA-5 Volts / -300mA31.75 x 20.32 x 10.16mm
MD-2412D318~36 Volts+12 Volts / +125mA-12 Volts / -125mA31.75 x 20.32 x 10.16mm
MD-2415D318~36 Volts+15 Volts / +100mA-15 Volts / -100mA31.75 x 20.32 x 10.16mm
MD-2424D318~36 Volts+24 Volts / +63mA-24 Volts / -63mA31.75 x 20.32 x 10.16mm
MD-483R3D336~75 Volts+3.3 Volts / +450mA-3.3 Volts / -450mA31.75 x 20.32 x 10.16mm
MD-4805D336~75 Volts+5 Volts / +300mA-5 Volts / -300mA31.75 x 20.32 x 10.16mm
MD-4812D336~75 Volts+12 Volts / +125mA-12 Volts / -125mA31.75 x 20.32 x 10.16mm
MD-4815D336~75 Volts+15 Volts / +100mA-15 Volts / -100mA31.75 x 20.32 x 10.16mm
MD-4824D336~75 Volts+24 Volts / +63mA-24 Volts / -63mA31.75 x 20.32 x 10.16mm

Related Products

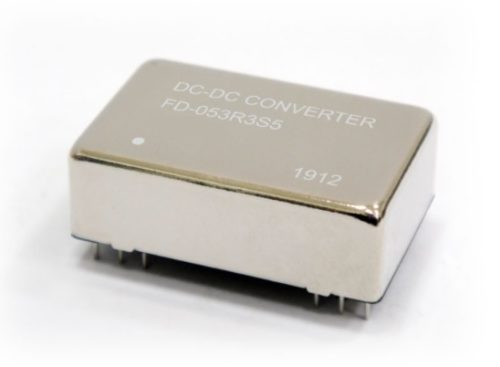

fd-5w-dcdc-converter fd-5w-dcdc-converter

FD-5 Watt

Models & Information

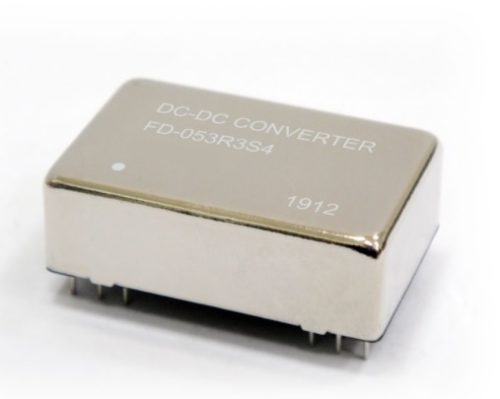

fd-4w-dcdc-converter fd-4w-dcdc-converter

FD-4 Watt

Models & Information

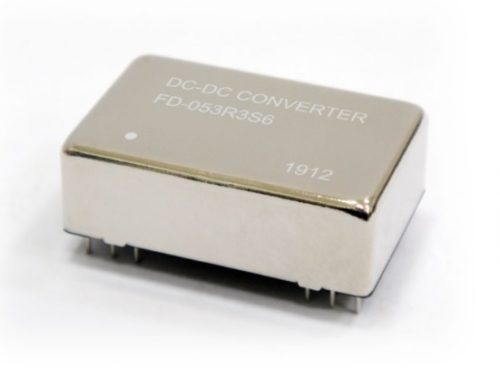

fd-6w-dcdc-converter fd-6w-dcdc-converter
