NC10HW-10 Watt

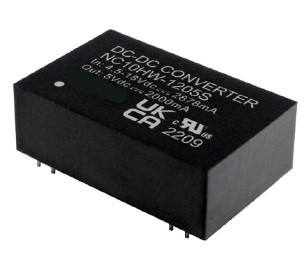

NC10HW Series, 10 Watt Through Hole DC-DC Converter

24 Pin DIL  Package

5000 VDC Isolation

Regulated Single and Dual Output

Request a quote Download Datasheet

Features

  • Reinforced Insulation for 250Vrms Working Voltage
  • Compact DIP DIP-24 Package
  • Wide 4:1 Input Range
  • Isolation Voltage up to 5000VAC
  • Over Voltage Protection
  • Over Load Protection
  • Continuous Short Circuit Protection
  • Remote On/Off Control
  • Under Voltage Protection
  • Soft Start
  • No minimum load required
  • Efficiency up to 89%
  • -40~100°C Operation Temperature Range

Models and Ratings

Model Input VDC Output VDC Output Current Size (24 Pin DIL)
NC10HW-1205S 4.5~18 Volts 5 Volts 2000mA 31.8 x 20.3 x 10.2mm
NC10HW-1212S 4.5~18 Volts 12 Volts 833mA 31.8 x 20.3 x 10.2mm
NC10HW-1215S 4.5~18 Volts 15 Volts 666mA 31.8 x 20.3 x 10.2mm
NC10HW-2405S 9~36 Volts 5 Volts 2000mA 31.8 x 20.3 x 10.2mm
NC10HW-2412S 9~36 Volts 12 Volts 833mA 31.8 x 20.3 x 10.2mm
NC10HW-2415S 9~36 Volts 15 Volts 666mA 31.8 x 20.3 x 10.2mm
NC10HW-4805S 18~75 Volts 5 Volts 2000mA 31.8 x 20.3 x 10.2mm
NC10HW-4812S 18~75 Volts 12 Volts 833mA 31.8 x 20.3 x 10.2mm
NC10HW-4815S 18~75 Volts 15 Volts 666mA 31.8 x 20.3 x 10.2mm

Dual Output Models

Model Input VDC Output 1 Output 2 Size (24 Pin DIL)
NC10HW-1205D 4.5~18 Volts +5 Volts / +1000mA -5 Volts / -1000mA 31.8 x 20.3 x 10.2mm
NC10HW-1212D 4.5~18 Volts +12 Volts / +416mA -12 Volts / -416mA 31.8 x 20.3 x 10.2mm
NC10HW-1215D 4.5~18 Volts +15 Volts / +333mA -15 Volts / -333mA 31.8 x 20.3 x 10.2mm
NC10HW-2405D 9~36 Volts +5 Volts / +1000mA -5 Volts / -1000mA 31.8 x 20.3 x 10.2mm
NC10HW-2412D 9~36 Volts +12 Volts / +416mA -12 Volts / -416mA 31.8 x 20.3 x 10.2mm
NC10HW-2415D 9~36 Volts +15 Volts / +333mA -15 Volts / -333mA 31.8 x 20.3 x 10.2mm
NC10HW-4805D 18~75 Volts +5 Volts / +1000mA -5 Volts / -1000mA 31.8 x 20.3 x 10.2mm
NC10HW-4812D 18~75 Volts +12 Volts / +416mA -12 Volts / -416mA 31.8 x 20.3 x 10.2mm
NC10HW-4815D 18~75 Volts +15 Volts / +333mA -15 Volts / -333mA 31.8 x 20.3 x 10.2mm
