n3-dcdc-converter n3-dcdc-converter

NE3-3W Series

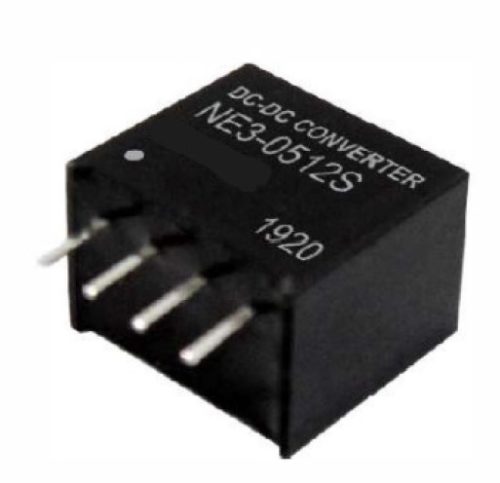

NE3 Series 3 Watt Unregulated Through Hole DC-DC Converter

4 Pin SIL Package

Single Output

Request a quote Download Datasheet

Features

  • 4 Pin SIL Package
  • Unregulated output
  • Efficiency up to 91%
  • 3000 VDC Isolation
  • -40 ~ 90°C Operation Temperature Range
  • Non-Conductive Black Plastic Case
  • EMI Complies With EN55032 Class B
  • Low Ripple and Noise

Models and Ratings

Model Input Voltage Output VDC Output Current Size
NE3-0505S 5 Volts 5 Volts 600mA 11.68 x 9.66 x 7.5mm
NE3-0509S 5 Volts 9 Volts 333mA 11.68 x 9.66 x 7.5mm
NE3-0512S 5 Volts 12 Volts 250mA 11.68 x 9.66 x 7.5mm
NE3-0515S 5 Volts 15 Volts 200mA 11.68 x 9.66 x 7.5mm
NE3-1205S 12 Volts 5 Volts 600mA 11.68 x 9.66 x 7.5mm
NE3-1209S 12 Volts 9 Volts 333mA 11.68 x 9.66 x 7.5mm
NE3-1212S 12 Volts 12 Volts 250mA 11.68 x 9.66 x 7.5mm
NE3-1215S 12 Volts 15 Volts 200mA 11.68 x 9.66 x 7.5mm
NE3-2405S 24 Volts 5 Volts 600mA 11.68 x 9.66 x 7.5mm
NE3-2409S 24 Volts 9 Volts 333mA 11.68 x 9.66 x 7.5mm
NE3-2412S 24 Volts 12 Volts 250mA 11.68 x 9.66 x 7.5mm
NE3-2415S 24 Volts 15 Volts 200mA 11.68 x 9.66 x 7.5mm
