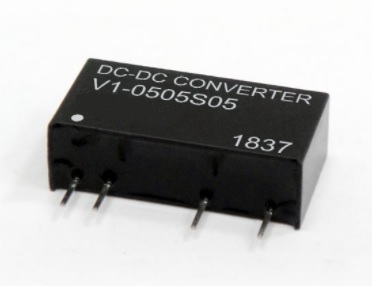

V1-0.5 Watt Series, 0.5 Watt Through Hole DC-DC Converter
Option of either 7 Pin SIL or 14 Pin DIL Package
Up to 6000 VDC Isolation
Features
- 7 Pin SIL / 14 Pin DIL Package
- 1000 VDC Isolation
- Up to 6000 VDC Isolation
- Low Ripple and Noise
- Efficiency up to 79%
- Operating Temperature:-40℃ TO +85℃
- Non-Conductive Black Plastic Case
Models and Ratings
| Model | Input VDC | Output VDC | Output Current | Size SS (7 Pin SIL) | Size DS (14 Pin DIL) |
|---|---|---|---|---|---|
| V1-053R3SS05 | 5 Volts | 3.3 Volts | 151.51mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0505SS05 | 5 Volts | 5 Volts | 100mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-057R2SS05 | 5 Volts | 7.2 Volts | 69.4mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0509SS05 | 5 Volts | 9 Volts | 55.5mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0512SS05 | 5 Volts | 12 Volts | 41.6mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0515SS05 | 5 Volts | 15 Volts | 33.3mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0518SS05 | 5 Volts | 18 Volts | 27.8mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0524SS05 | 5 Volts | 24 Volts | 20.8mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-123R3SS05 | 12 Volts | 3.3 Volts | 151.51mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1205SS05 | 12 Volts | 5 Volts | 100mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-127R2SS05 | 12 Volts | 7.2 Volts | 69.4mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1209SS05 | 12 Volts | 9 Volts | 55.5mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1212SS05 | 12 Volts | 12 Volts | 41.6mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1215SS05 | 12 Volts | 15 Volts | 33.3mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1218SS05 | 12 Volts | 18 Volts | 27.8mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1224SS05 | 12 Volts | 24 Volts | 20.8mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-243R3SS05 | 24 Volts | 3.3 Volts | 151.51mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2405SS05 | 24 Volts | 5 Volts | 100mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-247R2SS05 | 24 Volts | 7.2 Volts | 69.4mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2409SS05 | 24 Volts | 9 Volts | 55.5mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2412SS05 | 24 Volts | 12 Volts | 41.6mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2415SS05 | 24 Volts | 15 Volts | 33.3mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2418SS05 | 24 Volts | 18 Volts | 27.8mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2424SS05 | 24 Volts | 24 Volts | 20.8mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
Dual Output Models
| Model | Input VDC | Output 1 | Output 2 | Size S (7 Pin SIL) | Size D (14 Pin DIL) |
|---|---|---|---|---|---|
| V1-053R3S05 | 5 Volts | +3.3 Volts / +75.7mA | -3.3 Volts / -75.7mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0505S05 | 5 Volts | +5 Volts / 50mA | -5 Volts / -50mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-057R2S05 | 5 Volts | +7.2 Volts / +34.72mA | -7.2 Volts / -34.72mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0509S05 | 5 Volts | +9 Volts / +27.7mA | -9 Volts / -27.7mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0512S05 | 5 Volts | +12 Volts / +21mA | -12 Volts / -21mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0515S05 | 5 Volts | +15 Volts / +16.66mA | -15 Volts / -16.66mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0518S05 | 5 Volts | +18 Volts / +13.9mA | -18 Volts / -13.9mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-0524S05 | 5 Volts | +24 Volts / +10.4mA | -24 Volts / -10.4mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-123R3S05 | 12 Volts | +3.3 Volts / +75.7mA | -3.3 Volts / -75.7mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1205S05 | 12 Volts | +5 Volts / 50mA | -5 Volts / -50mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-127R2S05 | 12 Volts | +7.2 Volts / +34.72mA | -7.2 Volts / -34.72mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1209S05 | 12 Volts | +9 Volts / +27.7mA | -9 Volts / -27.7mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1212S05 | 12 Volts | +12 Volts / +21mA | -12 Volts / -21mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1215S05 | 12 Volts | +15 Volts / +16.66mA | -15 Volts / -16.66mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1218S05 | 12 Volts | +18 Volts / +13.9mA | -18 Volts / -13.9mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-1224S05 | 12 Volts | +24 Volts / +10.4mA | -24 Volts / -10.4mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-243R3S05 | 24 Volts | +3.3 Volts / +75.7mA | -3.3 Volts / -75.7mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2405S05 | 24 Volts | +5 Volts / 50mA | -5 Volts / -50mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-247R2S05 | 24 Volts | +7.2 Volts / +34.72mA | -7.2 Volts / -34.72mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2409S05 | 24 Volts | +9 Volts / +27.7mA | -9 Volts / -27.7mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2412S05 | 24 Volts | +12 Volts / +21mA | -12 Volts / -21mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2415S05 | 24 Volts | +15 Volts / +16.66mA | -15 Volts / -16.66mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2418S05 | 24 Volts | +18 Volts / +13.9mA | -18 Volts / -13.9mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
| V1-2424S05 | 24 Volts | +24 Volts / +10.4mA | -24 Volts / -10.4mA | 19.5 x 9.5 x 6mm | 20.32 x 10.16 x 6.88mm |
Notes
| Single Output ass Suffix DS for 14 Pin DIL Package |
| Dual output add Suffix 'D' for 14 Pin DIL Package |
| Add Suffix 'H' for 3000 VDC Isolation |
| Add Suffix H2 for 2000 VDC Isolation |
| Add Suffix 'H4' for 4000 VDC Isolation |
| `Add Suffix 'H5' for 5200 VDC Isolation |
| Add Suffix 'H6' for 6000 VDC Isolation |
