VA-0.5 Watt

VA-0.5 Watt Series, 0.5 Watt Through Hole DC-DC Converter

Option of either 4 Pin SIL or 8 Pin DIL Package

Up to 3000 VDC Isolation – Add suffix ‘H’

Request a quote Download Datasheet

Features

  • 4 Pin SIL / 8 Pin DIL Package
  • 1000 VDC Isolation
  • Up to 3000 VDC Isolation
  • Low Ripple and Noise
  • Efficiency up to 83%
  • Operating Temperature:-40℃ TO +85℃
  • Non-Conductive Black Plastic Case
  • EMI Complies With EN55032 Class B

Models and Ratings

ModelInput VDCOutput VDCOutput CurrentSize (4 Pin SIL)Size (8 Pin DIL)
VA-3R33R3S3.3 Volts3.3 Volts152mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-3R305S3.3 Volts5 Volts100mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-3R37R2S3.3 Volts7.2 Volts69mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-3R309S3.3 Volts9 Volts56mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-3R312S3.3 Volts12 Volts42mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-3R315S3.3 Volts15 Volts33mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-3R318S3.3 Volts18 Volts28mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-3R324S3.3 Volts24 Volts21mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-053R3S5 Volts3.3 Volts152mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-0505S5 Volts5 Volts100mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-057R2S5 Volts7.2 Volts69mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-0509S5 Volts9 Volts56mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-0512S5 Volts12 Volts42mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-0515S5 Volts15 Volts33mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-0518S5 Volts18 Volts28mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-0524S5 Volts24 Volts21mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-123R3S12 Volts3.3 Volts152mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1205S12 Volts5 Volts100mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-127R2S12 Volts7.2 Volts69mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1209S12 Volts9 Volts56mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1212S12 Volts12 Volts42mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1215S12 Volts15 Volts33mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1218S12 Volts18 Volts28mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1224S12 Volts24 Volts21mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-153R3S15 Volts3.3 Volts152mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1505S15 Volts5 Volts100mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-157R2S15 Volts7.2 Volts69mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1509S15 Volts9 Volts56mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1512S15 Volts12 Volts42mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1515S15 Volts15 Volts33mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1518S15 Volts18 Volts28mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-1524S15 Volts24 Volts21mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-243R3S24 Volts3.3 Volts152mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-2405S24 Volts5 Volts100mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-247R2S24 Volts7.2 Volts69mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-2409S24 Volts9 Volts56mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-2412S24 Volts12 Volts42mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-2415S24 Volts15 Volts33mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-2418S24 Volts18 Volts28mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm
VA-2424S24 Volts24 Volts21mA11.68 x 9.65 x 6mm12.7 x 10.18 x 6.85mm

Notes

Suffix S = 4 Pin SIL Package
Add Suffix 'D' for 8 Pin DIL Package
Add Suffix 'H' for 3000 VDC Isolation

Related Products

13DS1C 13DS1C

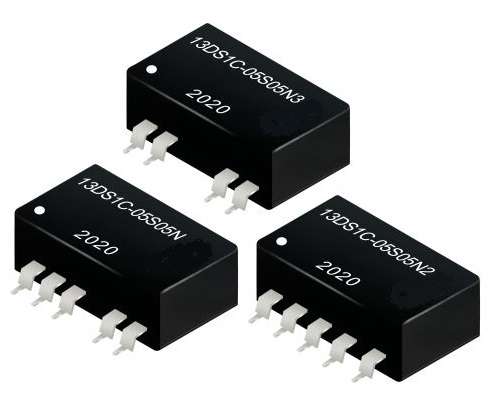

13DS1C – 1 Watt
