EC3SAW8-3 Watt

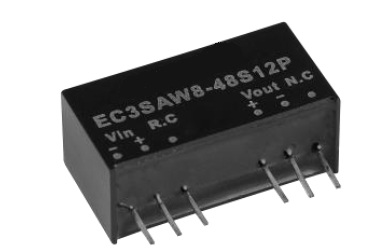

EC3SAW8 Series, 3 Watt Through Hole DC-DC Converter

8:1 Input Range SIP-8 Regulated DC-DC Converter

3000 VDC Isolation

Single and Dual Output

Request a quote Download Datasheet

Model	Input VDC	Output VDC	Output Current	Size
EC3SAW8-48S33P	9~75 Volts	3.3 Volts	700mA	21.8 x 11.1 x 9.2mm
EC3SAW8-48S05P	9~75 Volts	5 Volts	600mA	21.8 x 11.1 x 9.2mm
EC3SAW8-48S12P	9~75 Volts	12 Volts	250mA	21.8 x 11.1 x 9.2mm
EC3SAW8-48S15P	9~75 Volts	15 Volts	200mA	21.8 x 11.1 x 9.2mm

Model	Input VDC	Output 1	Output 2	Size
EC3SAW8-48D05P	9~75 Volts	+5 Volts / +300mA	-5 Volts / -300mA	21.8 x 11.1 x 9.2mm
EC3SAW8-48D12P	9~75 Volts	+12 Volts / +125mA	-12 Volts / -125mA	21.8 x 11.1 x 9.2mm
EC3SAW8-48D15P	9~75 Volts	+15 Volts / +100mA	-15 Volts / -100mA	21.8 x 11.1 x 9.2mm
