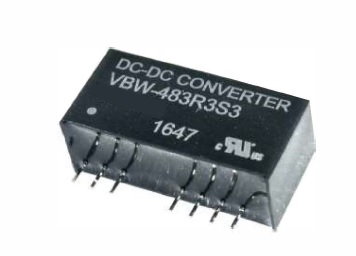

VBW-3W

VBW-3 Watt

Home | Products | Through Hole DC-DC Converters | VBW-3 Watt

VBW-3W Series, 3 Watt Through Hole DC-DC Converter

9 Pin SIL Package

1500 VDC Isolation

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

9 Pin SIL Package
Wide 4:1 Input Range
Full SMD Technology
Fully regulated output
Continuous Short Circuit Protection
Efficiency up to 85 %
Remote on/off Control
-40°C ~ +75°C Operating Temperature Range

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (9 Pin SIL)
VBW-243R3S3	9~36 Volts	3.3 Volts	700mA	26 x 12.5 x 9.3mm
VBW-2405S3	9~36 Volts	5 Volts	600mA	26 x 12.5 x 9.3mm
VBW-2412S3	9~36 Volts	12 Volts	250mA	26 x 12.5 x 9.3mm
VBW-2415S3	9~36 Volts	15 Volts	200mA	26 x 12.5 x 9.3mm

VBW-483R3S3	18~75 Volts	3.3 Volts	700mA	26 x 12.5 x 9.3mm
VBW-4805S3	18~75 Volts	5 Volts	600mA	26 x 12.5 x 9.3mm
VBW-4812S3	18~75 Volts	12 Volts	250mA	26 x 12.5 x 9.3mm
VBW-4815S3	18~75 Volts	15 Volts	200mA	26 x 12.5 x 9.3mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (9 Pin SIL)
VBW-2405SD3	9~36 Volts	+5 Volts / +300mA	-5 Volts / -300mA	26 x 12.5 x 9.3mm
VBW-2412SD3	9~36 Volts	+12 Volts / +125mA	-12 Volts / -125mA	26 x 12.5 x 9.3mm
VBW-2412SD3	9~36 Volts	+15 Volts / +100mA	-15 Volts / -100mA	26 x 12.5 x 9.3mm

VBW-4805SD3	18~75 Volts	+5 Volts / +300mA	-5 Volts / -300mA	26 x 12.5 x 9.3mm
VBW-4812SD3	18~75 Volts	+12 Volts / +125mA	-12 Volts / -125mA	26 x 12.5 x 9.3mm
VBW-4815SD3	18~75 Volts	+15 Volts / +100mA	-15 Volts / -100mA	26 x 12.5 x 9.3mm

Related Products

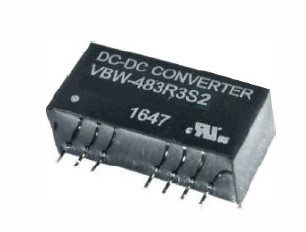

vbw-2w-dcdc-converter

VBW-2 Watt

Models & Information

EC3A-E-3W-DCDC-CONVERTER

EC3A-E-3 Watt

Models & Information

EC3AB-DCDC-CONVERTER

EC3AB-3 Watt

Models & Information

ec3aw-dcdc-converter

EC3AW-3 Watt

Models & Information

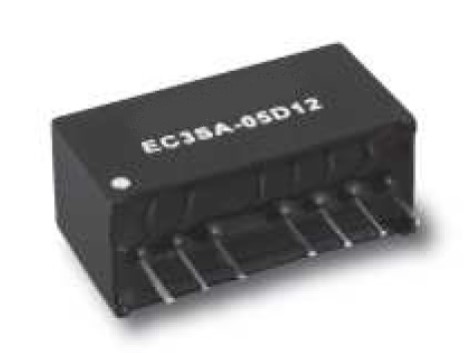

ec3sa-dcdc-converter
