https://www.allpsu.co.uk/wp-content/uploads/2022/01/V7-10W.jpg
v7-10w-dcdc-converter
V7-10 Watt
Home | Products | Encapsulated | V7-10 Watt
V7-10W Series, 10 Watt Through Hole DC-DC Converter
2×1″ Package
Up to 1500 VDC Isolation
2:1 Input Range
Single and Dual Output
Features
- 2:1 Input Range
- Full SMD Technology
- 1500 VDC Isolation
- Continuous Short Circuit Protection
- Efficiency up to 86 %
- EMI Complies with EN55032 Class A
- -40°C ~ +85°C Operating Temperature Range
Models and Ratings
| Model | Input VDC | Output VDC | Output Current | Size (2x1") |
|---|---|---|---|---|
| V7-123R3S10 | 9~18 Volts | 3.3 Volts | 2000mA | 50.8 x 25.4 x 10.16 |
| V7-1205S10 | 9~18 Volts | 5 Volts | 2000mA | 50.8 x 25.4 x 10.16 |
| V7-127R2S10 | 9~18 Volts | 7.2 Volts | 1388mA | 50.8 x 25.4 x 10.16 |
| V7-1209S10 | 9~18 Volts | 9 Volts | 1111mA | 50.8 x 25.4 x 10.16 |
| V7-1212S10 | 9~18 Volts | 12 Volts | 833mA | 50.8 x 25.4 x 10.16 |
| V7-1215S10 | 9~18 Volts | 15 Volts | 666mA | 50.8 x 25.4 x 10.16 |
| V7-1218S10 | 9~18 Volts | 18 Volts | 555mA | 50.8 x 25.4 x 10.16 |
| V7-1224S10 | 9~18 Volts | 24 Volts | 416mA | 50.8 x 25.4 x 10.16 |
| V7-243R3S10 | 18~36 Volts | 3.3 Volts | 2000mA | 50.8 x 25.4 x 10.16 |
| V7-2405S10 | 18~36 Volts | 5 Volts | 2000mA | 50.8 x 25.4 x 10.16 |
| V7-247R2S10 | 18~36 Volts | 7.2 Volts | 1388mA | 50.8 x 25.4 x 10.16 |
| V7-2409S10 | 18~36 Volts | 9 Volts | 1111mA | 50.8 x 25.4 x 10.16 |
| V7-2412S10 | 18~36 Volts | 12 Volts | 833mA | 50.8 x 25.4 x 10.16 |
| V7-2415S10 | 18~36 Volts | 15 Volts | 666mA | 50.8 x 25.4 x 10.16 |
| V7-2418S10 | 18~36 Volts | 18 Volts | 555mA | 50.8 x 25.4 x 10.16 |
| V7-2424S10 | 18~36 Volts | 24 Volts | 416mA | 50.8 x 25.4 x 10.16 |
| V7-483R3S10 | 36~75 Volts | 3.3 Volts | 2000mA | 50.8 x 25.4 x 10.16 |
| V7-4805S10 | 36~75 Volts | 5 Volts | 2000mA | 50.8 x 25.4 x 10.16 |
| V7-487R2S10 | 36~75 Volts | 7.2 Volts | 1388mA | 50.8 x 25.4 x 10.16 |
| V7-4809S10 | 36~75 Volts | 9 Volts | 1111mA | 50.8 x 25.4 x 10.16 |
| V7-4812S10 | 36~75 Volts | 12 Volts | 833mA | 50.8 x 25.4 x 10.16 |
| V7-4815S10 | 36~75 Volts | 15 Volts | 666mA | 50.8 x 25.4 x 10.16 |
| V7-4818S10 | 36~75 Volts | 18 Volts | 555mA | 50.8 x 25.4 x 10.16 |
| V7-4824S10 | 36~75 Volts | 24 Volts | 416mA | 50.8 x 25.4 x 10.16 |
Dual Output Models
| Model | Input VDC | Output 1 | Output 2 | Size (2x1") |
|---|---|---|---|---|
| V7-123R3D10 | 9~18 Volts | +3.3 Volts / +1000mA | -3.3 Volts / -1000mA | 50.8 x 25.4 x 10.16 |
| V7-1205D10 | 9~18 Volts | +5 Volts / +1000mA | -5 Volts / -1000mA | 50.8 x 25.4 x 10.16 |
| V7-127R2D10 | 9~18 Volts | +7.2 Volts / +694mA | -7.2 Volts / -694mA | 50.8 x 25.4 x 10.16 |
| V7-1209D10 | 9~18 Volts | +9 Volts / 555mA | -9 Volts / -555mA | 50.8 x 25.4 x 10.16 |
| V7-1212D10 | 9~18 Volts | +12 Volts / +416mA | -12 Volts / -416mA | 50.8 x 25.4 x 10.16 |
| V7-1215D10 | 9~18 Volts | +15 Volts / +333mA | -15 Volts / -333mA | 50.8 x 25.4 x 10.16 |
| V7-1218D10 | 9~18 Volts | +18 Volts / +277mA | -18 Volts / -277mA | 50.8 x 25.4 x 10.16 |
| V7-1224D10 | 9~18 Volts | +24 Volts / +208mA | -24 Volts / -208mA | 50.8 x 25.4 x 10.16 |
| V7-243R3D10 | 18~36 Volts | +3.3 Volts / +1000mA | -3.3 Volts / -1000mA | 50.8 x 25.4 x 10.16 |
| V7-2405D10 | 18~36 Volts | +5 Volts / +1000mA | -5 Volts / -600mA | 50.8 x 25.4 x 10.16 |
| V7-247R2D10 | 18~36 Volts | +7.2 Volts / +694mA | -7.2 Volts / -694mA | 50.8 x 25.4 x 10.16 |
| V7-2409D10 | 18~36 Volts | +9 Volts / 555mA | -9 Volts / -555mA | 50.8 x 25.4 x 10.16 |
| V7-2412D10 | 18~36 Volts | +12 Volts / +416mA | -12 Volts / -416mA | 50.8 x 25.4 x 10.16 |
| V7-2415D10 | 18~36 Volts | +15 Volts / +333mA | -15 Volts / -333mA | 50.8 x 25.4 x 10.16 |
| V7-2418D10 | 18~36 Volts | +18 Volts / +277mA | -18 Volts / -277mA | 50.8 x 25.4 x 10.16 |
| V7-2424D10 | 18~36 Volts | +24 Volts / +208mA | -24 Volts / -208mA | 50.8 x 25.4 x 10.16 |
| V7-483R3D10 | 36~75 Volts | +3.3 Volts / +1000mA | -3.3 Volts / -1000mA | 50.8 x 25.4 x 10.16 |
| V7-4805D10 | 36~75 Volts | +5 Volts / +1000mA | -5 Volts / -1000mA | 50.8 x 25.4 x 10.16 |
| V7-487R2D10 | 36~75 Volts | +7.2 Volts / +694mA | -7.2 Volts / -694mA | 50.8 x 25.4 x 10.16 |
| V7-4809D10 | 36~75 Volts | +9 Volts / 555mA | -9 Volts / -555mA | 50.8 x 25.4 x 10.16 |
| V7-4812D10 | 36~75 Volts | +12 Volts / +416mA | -12 Volts / -250mA | 50.8 x 25.4 x 10.16 |
| V7-4815D10 | 36~75 Volts | +15 Volts / +333mA | -15 Volts / -200mA | 50.8 x 25.4 x 10.16 |
| V7-4818D10 | 36~75 Volts | +18 Volts / +277mA | -18 Volts / -277mA | 50.8 x 25.4 x 10.16 |
| V7-4824D10 | 36~75 Volts | +24 Volts / +208mA | -24 Volts / -208mA | 50.8 x 25.4 x 10.16 |
Related Products
https://www.allpsu.co.uk/wp-content/uploads/2022/01/68DC-500x276.jpg
68DC 6 watt DC-DC Converter
68DC-6 Watt
Models & Information
https://www.allpsu.co.uk/wp-content/uploads/2022/01/vn-15W.jpg
vn-15w-dcdc-converter
VN-15W Series
Models & Information
https://www.allpsu.co.uk/wp-content/uploads/2022/01/V7-15W.jpg

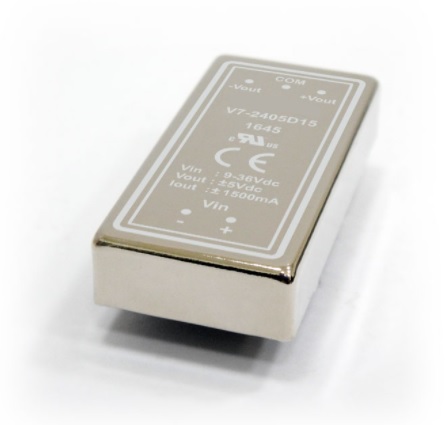

v7-15w-dcdc-converter
